CP247
Gallery
BrandVAICO
MPNV46-1228
OE refs170
SKU0162-V46-1228
GTIN / EAN4062375166183

Similar products

Customers also bought

Details

SpecificationValue
BrandVAICO
MPNv46-1228
Categorybrake set, disc brake
Rim Hole Number4 -Hole
Fitting PositionFront Axle
Height [mm]41 mm
Bore Diameter [mm]12.7 mm
Brake Disc Thickness [mm]20.7 mm
Minimum thickness [mm]17.7 mm
Inner Diameter [mm]130 mm
Outer Diameter [mm]259 mm
Centering Diameter [mm]61 mm
Bolt Hole Circle Ø [mm]100 mm
Bore Diameter 1 [mm]12.65 mm
Bore Diameter 2 [mm]8.5 mm
fulfils ECE normR90

OE/OEM numbers (170)

Search by this OE number to find compatible parts

Where this part fits

Original-fit position for OE 410602192R. The red ring marks where this part installs on the vehicle.

Equipment level = E2 or Equipment level = E3 or Equipment level = E1, Vehicle fabrication number < MOD0106, Anti-lock braking system = Yes; Equipment level = ES2, Vehicle fabrication number < MOD0106; Vehicle fabrication number >= MOD0106 — CB05 — Manual › 32 Non bearing front elements / Brake calipers
CB05 · Manual › 32 Non bearing front elements / Brake calipersPosition 7

What's in the kit

This kit ships with 2 factory-matched components. Each part below is supplied as part of the kit; click any linked MPN to view that component on its own.

#Part numberComponentQty

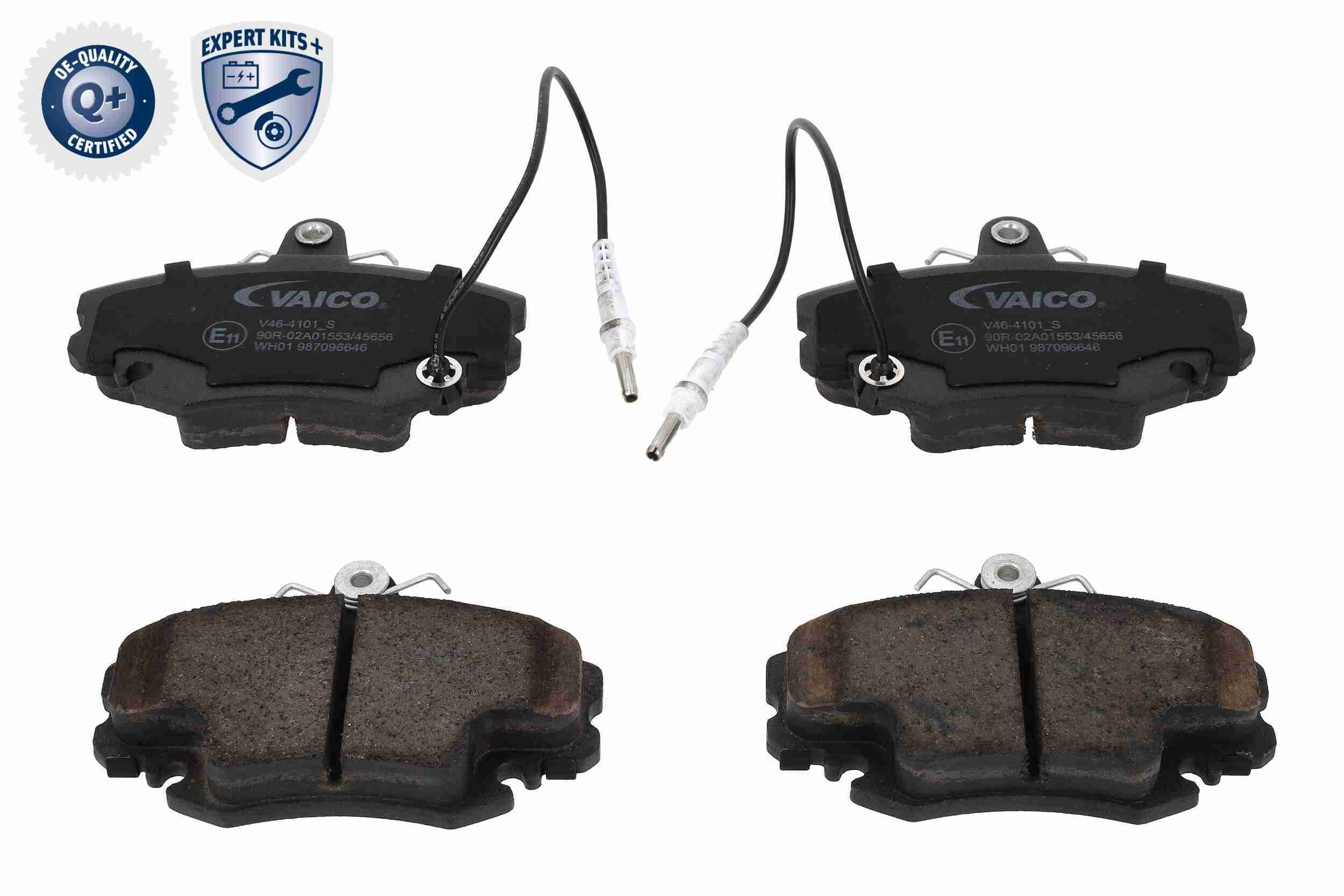

3V46-4101
Brake pad set
Fitting Position
VA
Thickness [mm]
18,2 mm
Width [mm]
100,0 mm
Height [mm]
64,8 mm
Number of wear indicators [per axle]
2 Per Axle
Wear Warning Contact
0
Brake System
LUCAS
Warning Contact Length [mm]
215 mm
Supplementary Article/Info 2
7
1
4V46-80002
Brake Disc
Rim Hole Number
4 -Hole
Fitting Position
VA
Height [mm]
41 mm
Brake Disc Type
8
Brake Disc Thickness [mm]
20,7 mm
Minimum thickness [mm]
17,7 mm
Outer Diameter [mm]
259 mm
Centering Diameter [mm]
61 mm
Bolt Hole Circle Ø [mm]
100 mm
Brake Disc Hub Height [mm]
20,2 mm
2

About this product

Sourced from VAICO, this brake set, disc brake (V46-1228) combines precision engineering with durable materials to meet the demands of everyday driving and extended service intervals. Technical specifications — Rim Hole Number: Copper -Hole, Fitting Position: Front Axle, Height [mm]: 41 mm, Bore Diameter [mm]: Zinc, Ceramic mm, Brake Disc Type: Carbon — are verified against the OEM data sheet to guarantee fitment accuracy and performance parity with the original equipment. Verified to fit DACIA, RENAULT models. All compatibility data is cross-checked against the TecDoc database — select your vehicle to confirm the part matches your specific engine and year. This part supersedes original equipment references: 01.18.42.120768, 01.25.42.107135, 01.25.42.120792, 0141 02 and 705 more. Matching these numbers confirms a like-for-like replacement with no loss of function. VAICO is a recognised supplier of automotive braking components to independent workshops and dealer networks across Europe. All parts are sourced from authorised distribution channels and carry full manufacturer traceability — you receive exactly the same component supplied to professional garages and dealer workshops. If fitment or specifications do not match your vehicle, our technical team can help identify the correct alternative — use the vehicle selector or contact us with your VIN for a guaranteed-fit recommendation. Replacing worn components on schedule preserves your vehicle's safety, reliability, and resale value — and aftermarket parts from established brands deliver OEM-equivalent performance at a fraction of the dealer price. Every part is dispatched from our UK warehouse with a 30-day money-back guarantee and free hassle-free returns.

Suitable cars

Equivalent products (200)

Show all 200 OE numbers
A.B.S.09.5802.21
A.B.S.16150
A.B.S.16150 OE
A.B.S.16150S
A.B.S.36583
A.B.S.36881
A.B.S.36881
A.B.S.36881 OE
ACDelcoAC2096D
ACDelcoAC447881D
ACDelcoAC724281D
AIC53636
AKEBONOBN-0025
AKEBONOBN-0025E
AKRON-MALÒ1110201
AP24768 E
AP24768 V
AP24768 X
APX 24768
APECDSK836
APECSDK6065
ASAM AUTOMOTIVE30137
ASHIKA50-00-035
ASHIKA60-01-142
ASHIKA60-01-142C£41.99
ASHUKI by PalidiumN013-19
ATE13.0460-2834.2£26.99
ATE13.0460-2955.2£25.99
ATE24.0121-0106.1£38.99
AUTOMOTOR FrancePDC3557
BARUMBA2023
BARUMBAR21106
BENDIX521943
BENDIX561997B
BENDIX571327B
BENDIX571526B
BENDIX571526X
BENDIX BrakingBDI245
BLUE PRINTADN143114£32.99
BLUE PRINTADR164203£18.99
BORG & BECKBBD4317
BOSCH0 986 467 720£21.99
BOSCH0 986 469 191£32.99
BOSCH0 986 478 124£33.99
BOSCH0 986 479 833
BOSCH0 986 479 B21£34.99
BOSCH0 986 494 522£58.99
BOSCH0 986 495 212
BOSCH0 986 AB6 147
BOSCH0 986 BB4 072
BOSCH0 986 TB2 005
BOSCH0 986 TB2 513
BOSCH0 986 TB2 953
Brake ENGINEERINGDI955314
Brake ENGINEERINGPA437
BRAXISAE0307
BRECK20905 00 702 10
BRECKBR 304 VA100
BRECOBS 8362
BRECOBV 8362
BREMBO09.5802.10
BREMBO09.5802.14
BREMBO09.5802.21£38.99
BREMBO09.5802.24
BREMBO09.5802.2X£65.99
BREMBO09.5802.75
BREMBO09.5802.76£49.99
BREMBODP 68 007
BREMBOFD.052.000
BREMBOP 68 008£28.99
BREMBOP 68 010£22.99
BREMSIDBB096V
CAR142.549
CAR142.552
CARHPD 549
CARHPD 552
CASALS55377
CASALS55429
CHAMPION561997CH
CHAMPION571526CH
CIFAM800-549
CIFAM800-549C
CIFAM822-120-0
CIFAM822-120-0K
COMLINEADC1507V£32.99
COMLINEAND6022
DELPHIBG2625£27.99
DELPHIBG2625C
DELPHILP542£27.99
DELPHILP56£18.99
DELPHILP885£19.99
DENCKERMANNB130028£23.99
DONPCD10182
DYNAMATRIXDBD1096
E.T.F.12-0201
E.T.F.12-0229
E.T.F.12-0269
E.T.F.12-0360
E.T.F.12-0590
E.T.F.19-3550
EUROBRAKE5815203910
FARCOM230827
FASTFT31125£31.99
FEBEST2401-LOGF
FEBI BILSTEIN09073£26.99
FEBI BILSTEIN16191£17.99
FENOXTB217741
FENOXTB217749
FERODODDF1096
FERODODDF1096C£69.99
FERODODRF1096
FERODODRF798
FERODOFDB1781£34.99
FERODOFDB845
FERODOFDS845
FERODOFQT845
FERODOFSL1781
FERODOFSL845
FI.BAFBD114
FIRST LINEFBD1327
FIRST LINEFBD453
FIRST LINEFBP3001
FITFR0147V
FOMAR FrictionFO 2096
FREMAXBD-3550£40.99
FREMAXFBP-0920
FREMAXFBP-0920-01
FRIGAIRDC09.104
fri.tech.122.0
fri.tech.122.0W
fri.tech.BD0836
fri.tech.DF836
FTEBL1323A2
FTEBS3899
FTEBS3899B
GIRLING6025861
GIRLING6104001
GIRLING6104251
GIRLING6108071
GIRLING6109681
GIRLING6113321
GIRLING6114651
GIRLING6116341
GRAFDF29549
HELLA8DB 355 018-131
HELLA8DB 355 045-591
HELLA8DD 355 102-491
HELLA8DD 355 107-121
HELLA8DD 355 126-531
HELLA8DD 355 129-921
HELLA8DD 355 134-191
HELLA PAGID8DB 355 018-131
HELLA PAGID8DD 355 107-121
HELLA PAGID8DD 355 126-531
HELLA PAGID8DD 355 129-921
HELLA PAGID8DD 355 134-191
HERTH+BUSS JAKOPARTSJ3301094
HERZOG GERMANY88 6881
ICER180554
ICER180554-700£32.99
ICER180557
ICER180557-700£37.99
ICER180633£24.99
ICER180993
ICER180993-204£40.99
ICER180993-700
ICER78BD3550-2
JAPANPARTSDI-142
JAPANPARTSDI-142C
JAPANPARTSPA-035AF
JAPKO50035
JAPKO60142
JAPKO60142C£32.99
JP GROUP4163603110£18.99
JP GROUP4363101900£30.99
JURID561997J
JURID561997JC£27.99
JURID571327J-AS
JURID571526D£21.99
JURID571526J£21.99
KAGER37-0373
KAGER37-0521
KAMOKA1011690
KAMOKA1032192£24.99
KAMOKAJQ1011690£18.99
KAVO PARTSBR-6780
KAVO PARTSBR-6780-C
KAVO PARTSBR-7214
KAWE0141 02
KAWE0141 30
KAWE0141 32
KAWE37683
KAWE38443
KAWE6144 10
KBPBR-6780
KBPBR-7214
KEY PARTSKBD4317
KLAXCAR FRANCE24304z
KLAXCAR FRANCE24633z
KLAXCAR FRANCE25006z

brake set, disc brake VAICO V46-1228 — compatible car models

Car modelsDACIA: LOGAN (LS), LOGAN MCV (KS), SANDERO; RENAULT: 19 I (B/C53), 19 I Cabriolet (D53), 19 I Chamade (L53), 19 II (B/C53), 19 II Cabriolet (D53, 853), 19 II Chamade (L53), 19 II Hatchback Van (S53), CLIO I (B/C57, 5/357), CLIO II (BB, CB), CLIO II Hatchback Van (SB0/1/2) (+12 more)
Engines1.2 16V LPG; 1.4; 1.2 16V; 1.8 16V (B/C53D); 1.8 16V (D53D); 1.7 (L53F); 1.7 (B/C53B); 1.4 (L535); 1.9 dT; 1.8 16V (C57D); 1.2 16V (BB05, BB0W, BB11, BB27, BB2T, BB2U, BB2V, CB05,...; 1.5 dCi (SB07); 1.5 dCi; 1.4 16V (BA0D, BA1H, BA0W, BA10); 1.4 16V (EA0D, EA1H, EA0W, EA10) (+6 more)
Year of manufacture1988-2016
Manufacturer article number (MPN)V46-1228
OE part numbers1611460280, 245050, 301204358, 40 20 629 84R, 41 06 021 92R, 410609342R, 424862, 424865, 424874, 424878, 425017, 425018, 425032, 425033, 425034, 425035, 425036, 425041, 425043, 425049 (+150 more)
Compatibility check

Loading vehicle data…

Please wait while we load vehicle compatibility information.
Description and what's included

VAICO v46-1228 EXPERT KITS +. Bolt Hole Circle Ø [mm]: 100 mm. Bore Diameter 1 [mm]: 12,65 mm. Bore Diameter 2 [mm]: 8,5 mm. Bore Diameter [mm]: 12,7 mm. Brake Disc Thickness [mm]: 20,7 mm. Brake Disc Type: 8. Centering Diameter [mm]: 61 mm. Fitting Position: VA

What's included:
  • 1x brake set, disc brake
Shipping, returns, warranty

Free UK delivery on orders over £99.00. Express and standard shipping available.

  • Standard delivery: 2-5 business days
  • Express delivery: 1-2 business days
  • Free returns within 14 days
  • All parts backed by manufacturer warranty

Warranty: 12-month manufacturer warranty on all parts. 14-day money-back guarantee if the part doesn't fit your vehicle.

Frequently Asked Questions

Is this brake set, disc brake compatible with my car?

This brake set, disc brake fits DACIA, RENAULT vehicles. Use the vehicle selector at the top of the page to check exact compatibility — enter your car's make, model, and engine for a confirmed fitment match. All fitment data is verified through TecDoc.

What specifications does this VAICO brake set, disc brake have?

This VAICO brake set, disc brake has the following specifications: Rim Hole Number: 4 -Hole; Fitting Position: VA; Height [mm]: 41 mm; Bore Diameter [mm]: 12,7 mm; Brake Disc Type: 8; Brake Disc Thickness [mm]: 20,7 mm. Check the full specifications table above for complete details.

What OE part numbers does this brake set, disc brake replace?

This brake set, disc brake replaces OE part numbers: 1611460280, 245050, 301204358, 40 20 629 84R, 41 06 021 92R, 410609342R, 424862, 424865 and 162 more. Cross-reference these numbers with your vehicle's original part number to confirm compatibility.

How much does a brake set, disc brake cost?

This VAICO brake set, disc brake is available for £99.99. Brake set, disc brake prices vary depending on brand, specifications, and vehicle compatibility. VAICO parts offer a balance of quality and value, backed by our 14-day money-back guarantee.

How do I know when to replace my brake set, disc brake?

Regular inspection of your brake set, disc brake is recommended as part of routine vehicle maintenance. Watch for changes in performance, unusual noises, or visual signs of wear. Consult your vehicle's owner manual for manufacturer-recommended replacement intervals specific to your make and model.

What tools do I need to replace a brake set, disc brake?

Tools required vary by vehicle make and model. Generally, a basic socket set, screwdrivers, and vehicle-specific tools may be needed. We recommend consulting a workshop manual for your specific vehicle, or having the brake set, disc brake fitted by a professional mechanic.

Can I use this part as a replacement for OE 1611460280?

Yes, this VAICO brake set, disc brake is a direct replacement for OE part number 1611460280. It is manufactured to meet or exceed original equipment specifications, ensuring proper fitment and performance. All cross-reference data is verified through TecDoc.

Is the VAICO V46-1228 the same as the VAICO V10-5591?

No, while both are brake set, disc brake parts, they are different products. The VAICO V46-1228 has Rim Hole Number: 4 -Hole, Fitting Position: VA, Height [mm]: 41 mm. The VAICO V10-5591 may differ in dimensions, fitting position, or material composition. Always verify compatibility with your specific vehicle using our vehicle selector, or contact our customer service team for assistance.
