CP247
Gallery
BrandHELLA
MPN8DB 355 029-091
OE refs21
SKU0002-8DB 355 029-091
GTIN / EAN4082300645330

Similar products

Customers also bought

Doing a front brake service?

Get all 2 parts in one click with our pre-assembled kit.

View kit

Details

SpecificationValue
BrandHELLA
MPN8db355029-091
CategoryBrake pad set
QualityNAO

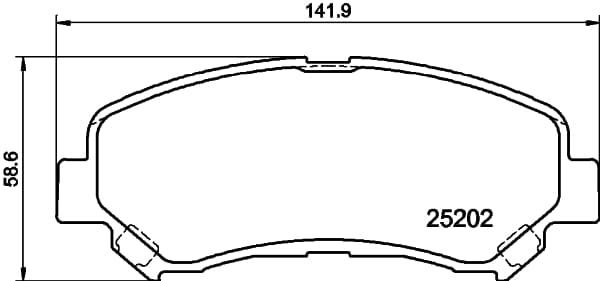

Thickness [mm]16.8 mm
Width [mm]141.9 mm
Height [mm]58.6 mm
Weight [kg]1.7 kg
Number of wear indicators [per axle]1 Per Axle
Brake SystemAkebono

OE numbers (21)

Search by this OE number to find compatible parts

Where this part fits

Original-fit position for OE AY040NS173. The red ring marks where this part installs on the vehicle.

JUKE (F15) — Chassis › 440A 001
JUKE (F15) · Chassis › 440A 001Position 41000K

About this product

HELLA brake pads (8DB 355 029-091) deliver consistent stopping power through a friction compound engineered for low noise, reduced brake dust, and stable bite across a wide temperature range. The pad compound characteristics — Quality: NAO, Thickness [mm]: Silicone, Carbon mm, Width [mm]: 141, Stainless Steel mm, Height [mm]: 58, Plastic mm — are selected to balance progressive pedal feel with minimal wear on mating discs. Designed as a direct replacement for HAIMA (FAW), NISSAN, NISSAN (DFAC), SUZUKI and 1 other makes applications, these pads slot into the original caliper bracket without modification. Cross-references OE part numbers: 0252463217, 0986494501, 0986BB0444, 0986TB3117 and 121 more. HELLA brake friction products are validated in independent dynamometer tests and are used by authorised service centres throughout Europe. Brake pads typically need replacing every 25,000–50,000 miles, depending on driving style, vehicle weight, and whether you drive mostly in urban stop-start traffic or on open roads. Watch for squealing or grinding noises when braking, increased stopping distances, a pulsating brake pedal, or a brake warning light on your dashboard — any of these signals that the friction material is worn to its minimum thickness. Brake pad replacement is a moderate DIY job requiring basic hand tools, a jack, and axle stands — allow approximately 1–2 hours per axle for a first-time installer, less if you have experience with caliper removal. When choosing brake pads, look for ECE R90 approval (mandatory for road use in Europe), copper-free formulations for environmental compliance, and a shim or anti-squeal backing plate for quiet operation. Replacing brake pads promptly prevents scoring and heat damage to the more expensive brake discs, saving significantly on repair costs in the long run. Every part is dispatched with tracked delivery and a 14-day money-back guarantee with hassle-free returns.

Brake pad set buying guide

Why replace this part?

Brake pads are the primary friction component in your braking system. As they wear thin, braking performance deteriorates, increasing stopping distances and putting your safety at risk. Worn pads can also damage brake discs, leading to more expensive repairs.

Signs you need a replacement

  • Squealing or grinding noises when braking
  • increased stopping distances
  • brake pedal vibration or pulsation
  • dashboard warning light
  • visible pad thickness below 3mm
  • pulling to one side when braking

When to replace

Every 30,000–70,000 miles depending on driving conditions, pad material, and vehicle weight. City driving with frequent stops wears pads faster than motorway driving.

Installation difficulty:Moderate — requires basic tools and mechanical knowledge

About HELLA

HELLA, founded in 1899 in Lippstadt, Germany, is a global automotive lighting and electronics specialist now operating as FORVIA HELLA. HELLA specialises in headlamps, rear lights, signal lighting, sensors, actuators, and electronic control units. As an OE supplier to virtually all major car manufacturers, HELLA products represent the cutting edge of automotive lighting and electronic technology. With 125+ years of innovation in vehicle illumination and electronics, HELLA is the definitive choice for high-quality lighting and electronic component replacements.

Suitable cars

Equivalent products (110)

Show all 110 OE numbers
ABEC11086ABEP
A.B.S.P79028
ADVICSB1N094
ADVICSSN504
AISINB1N094
AISINBPNI1004
AISINSN504
AKEBONOACT1338A
AKEBONOACT1338B
AKEBONOASP1338A
AKEBONOASP1338B
APECPAD1869
ASIMCOKD1744F
AUTOMOTOR FrancePBP0153
BENDIX510960
BENDIXCVP1946PTHD
BENDIX BrakingBC3172M
BORG & BECKBBP2355
BOSCH0986494501
BOSCH0986BB0444
BOSCH0986TB3117
BOSCHF03B150194
Brake ENGINEERINGPA1775
BRAXISAA0051
BREMBOP56062N
BREMBOP79028
BREMBOP79028N
DANAHERADP0123
DANAHERDBP2031
DANAHERDBP20311
DBA AustraliaDB1946SS
DELPHILP2031N18B1
DONPCP1572
Dr!ve+DP1010100014
DYNAMATRIXDBP4051
EBC BrakesDP21954
EBC BrakesDP41954R
EBC BrakesDP61954
EUROREPAR1681211680
EUROREPAR1682310480
FERODOFDB4051S
FERODOHQF2371AC
FMSI-VERBAND8449D1338
FMSI-VERBANDD1338
FOMAR FrictionFO933681
FREMAXFBP1585
fri.tech.8080
FTE9001092
FTE9001912
FTE9010645£39.99
GIRLING6135219
HELLA355 029-091
HELLA355029091
HELLA8DB 355 029-091
HELLA PAGID355 015-911
HELLA PAGID355029091
HELLA PAGID355033541
HELLA PAGID355045191
HELLA PAGID355114601
HELLA PAGID355130232
HELLA PAGID8DB355015911
HELLA PAGID8DB355029091
HELLA PAGID8DB355033541
HELLA PAGID8DB355045191
Hi-QSP1451
KAVO PARTSKBP6519
MAGNETI MARELLI363700202073
MAXGEAR193393
MEYLE0252463217
MGA919
MINTEXMDB2938
MINTEXMDB3172
MINTEXMDB83172
MINTEXMDK0265
MK KashiyamaD1276
MK KashiyamaD1312
MK KashiyamaD1312H
NAPAPBP7599
NiBKPN2801
NISSHINBONP2048
NISSHINBOPF2546
NK222269
PAGIDT2073
PAGIDT2073MX
RAICAMRA09500
RAICAMRA09503
RIDEX402B0173
SANGSIN BRAKESP1451
STELLOX1329000BSX
STELLOX1329000SX
TOMEX BrakesTX1597
TRISCAN811010577
TRUSTING8080
TRWGDB3467DT
TRWGDB3521£53.99
TRWTRC1338
TRWTRC1374
WAGNEROEX1338
WAGNERQC1374
WAGNERWZD1338D
ZIMMERMANN252021701

Brake pad set HELLA 8DB 355 029-091compatible car models

Car modelsHAIMA (FAW): 8S, S5; NISSAN: JUKE (F15), MAXIMA VII (A35), MAXIMA VIII (A36), QASHQAI I (J10, NJ10), QASHQAI I VAN (J10), ROGUE, SENTRA VI (B16), X-TRAIL II (T31); NISSAN (DFAC): X-TRAIL (T31); SUZUKI: KIZASHI (FR); VENUCIA: D60, T60
Engines1.6; 160; 1.6 DIG-T NISMO RS; 3.0; 3.5; 1.5 dCi; 2.5; 2.0; 2.4 4WD (A6B424, RF91S); EV
Year of manufacture2006-2019
Manufacturer article number (MPN)8DB 355 029-091
OE part numbers41060JD00A, 5581057L00, 5581057L00000, 5581057L01, 5581057L01000, 5581057L02, 5581057L02000, 5581057L50, 5581057L50000, 5581057L51, 5581057L51000, AY040NS173, D10602GD0A, D10603UB0A, D10609DF0A, D10609N00A, D10609N50A, D1060JD00A, D1083JE00A, D108MJE00J (+1 more)
Compatibility check

Loading vehicle data…

Please wait while we load vehicle compatibility information.
Description and what's included

HELLA 8db355029-091 NAO. Brake System: Akebono. Height [mm]: 58,6 mm. Number of wear indicators [per axle]: 1 Per Axle. Quality: NAO. Supplementary Article/Supplementary Info: 0. Thickness [mm]: 16,8 mm. Wear Warning Contact: 0. Weight [kg]: 1,7 kg

What's included:
  • 1x Set of brake pads (axle set)
  • Wear indicator wire (where applicable)
  • Mounting accessories (where applicable)
Shipping, returns, warranty

Free UK delivery on orders over £99.00. Tracked standard shipping.

  • Standard delivery: 5–9 business days
  • Order before 5pm — ships the next working day
  • Free returns within 14 days
  • All parts backed by manufacturer warranty

Warranty: 12-month manufacturer warranty on all parts. 14-day money-back guarantee if the part doesn't fit your vehicle.

Frequently Asked Questions

Is this Brake pad set compatible with my car?

This Brake pad set fits HAIMA (FAW), NISSAN, NISSAN (DFAC), SUZUKI, VENUCIA vehicles. Use the vehicle selector at the top of the page to check exact compatibility — enter your car's make, model, and engine for a confirmed fitment match. All fitment data is verified through TecDoc.

What specifications does this HELLA Brake pad set have?

This HELLA Brake pad set has the following specifications: Quality: NAO; Thickness [mm]: 16,8 mm; Width [mm]: 141,9 mm; Height [mm]: 58,6 mm; Weight [kg]: 1,7 kg; Number of wear indicators [per axle]: 1 Per Axle. Check the full specifications table above for complete details.

What OE part numbers does this Brake pad set replace?

This Brake pad set replaces OE part numbers: 41060JD00A, 5581057L00, 5581057L00000, 5581057L01, 5581057L01000, 5581057L02, 5581057L02000, 5581057L50 and 13 more. Cross-reference these numbers with your vehicle's original part number to confirm compatibility.

How much does a Brake pad set cost?

Brake pad set prices vary depending on brand, specifications, and vehicle compatibility. Check the current price above for this HELLA Brake pad set. All parts come with our 14-day money-back guarantee.

How do I know when to replace my Brake pad set?

Common signs include squealing or grinding noises when braking, increased stopping distances, brake pedal vibration, or a dashboard warning light. Most brake pads should be inspected every 20,000 miles and replaced when pad thickness falls below 3mm.

What tools do I need to replace a Brake pad set?

Tools needed: floor jack and axle stands, lug wrench or 19mm socket, brake caliper wind-back tool (or C-clamp), 7mm hex / Torx socket for caliper bolts, brake cleaner spray, copper grease, torque wrench. Difficulty: Moderate DIY. Safety warning: Never compress the caliper piston without checking the brake fluid reservoir level will not overflow; brake fluid is corrosive -- keep it off painted surfaces and skin.

Can I use this part as a replacement for OE 41060JD00A?

Yes, this HELLA Brake pad set is a direct replacement for OE part number 41060JD00A. It is manufactured to meet or exceed original equipment specifications, ensuring proper fitment and performance. All cross-reference data is verified through TecDoc.
