BrandHELLA
MPN8DB 355 012-891
OE refs33
SKU0002-8DB 355 012-891
GTIN / EAN4082300357202

Similar products

Customers also bought

Doing a front brake service?

Get all 2 parts in one click with our pre-assembled kit.

View kit

Details

SpecificationValue
BrandHELLA
MPN8db355012-891
CategoryBrake pad set
Thickness [mm]20.5 mm
Weight [kg]2.2 kg
Height 1 [mm]66.6 mm
Height 2 [mm]72 mm
Brake SystemTeves
Width 1 [mm]155.1 mm
Width 2 [mm]156.3 mm
Article number of recommended accessories8DZ 355 201-271

OE numbers (33)

Search by this OE number to find compatible parts

Where this part fits

Original-fit position for OE 1747043. The red ring marks where this part installs on the vehicle.

2 Chassis — 20603 Chassis.Front Brake Discs & Caliper › 2060305 Front Brake Discs And Calipers
2 Chassis · 20603 Chassis.Front Brake Discs & Caliper › 2060305 Front Brake Discs And CalipersPosition 2001

About this product

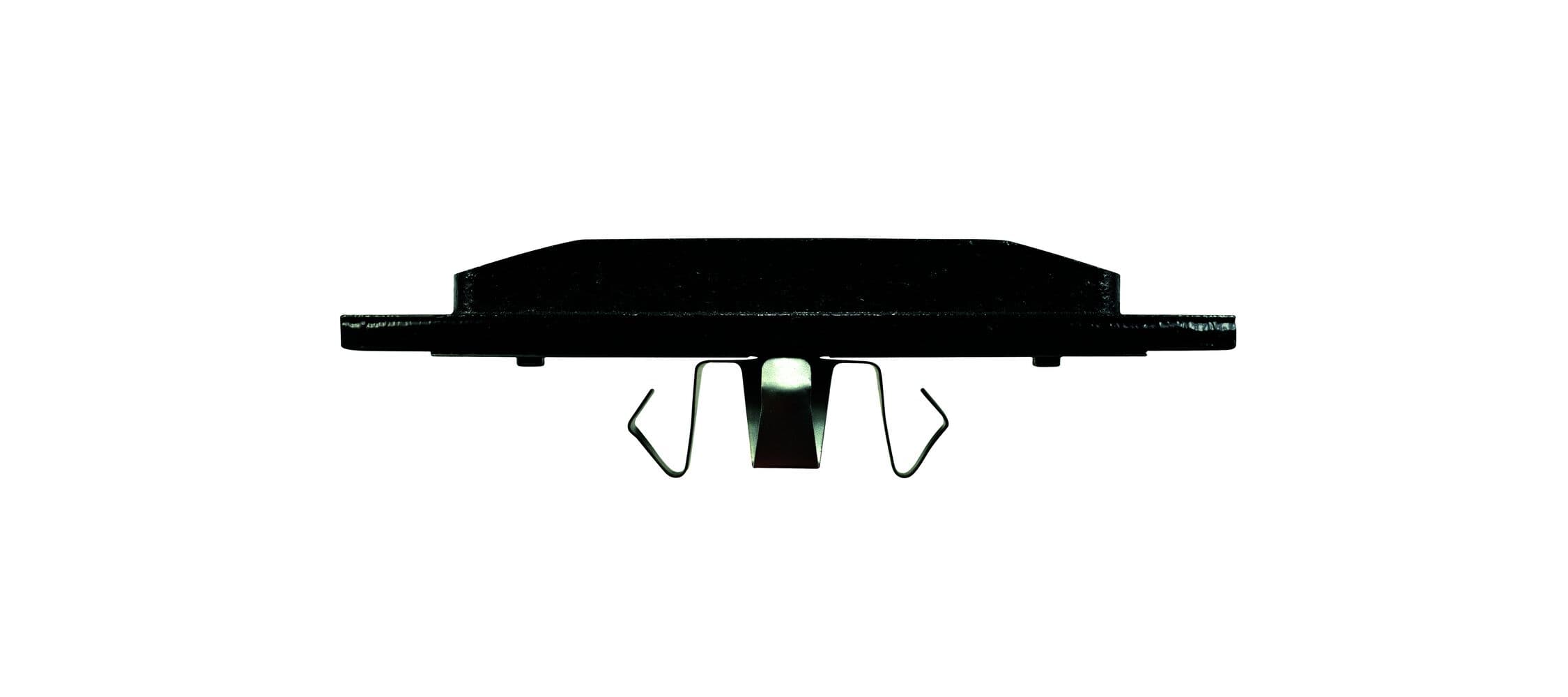

HELLA brake pads (8DB 355 012-891) deliver consistent stopping power through a friction compound engineered for low noise, reduced brake dust, and stable bite across a wide temperature range. The pad compound characteristics — Thickness [mm]: 20, Rubber mm, Weight [kg]: Aluminium, Aluminium kg, Height 1 [mm]: 66, Plastic mm, Height 2 [mm]: 72 mm — are selected to balance progressive pedal feel with minimal wear on mating discs. Designed as a direct replacement for FORD, FORD AUSTRALIA, LAND ROVER, MG and 4 other makes applications, these pads slot into the original caliper bracket without modification. Cross-references OE part numbers: 001088BSX, 001088SX, 0252412319, 0252412319PD and 236 more. HELLA brake friction products are validated in independent dynamometer tests and are used by authorised service centres throughout Europe. Brake pads typically need replacing every 25,000–50,000 miles, depending on driving style, vehicle weight, and whether you drive mostly in urban stop-start traffic or on open roads. Watch for squealing or grinding noises when braking, increased stopping distances, a pulsating brake pedal, or a brake warning light on your dashboard — any of these signals that the friction material is worn to its minimum thickness. Brake pad replacement is a moderate DIY job requiring basic hand tools, a jack, and axle stands — allow approximately 1–2 hours per axle for a first-time installer, less if you have experience with caliper removal. When choosing brake pads, look for ECE R90 approval (mandatory for road use in Europe), copper-free formulations for environmental compliance, and a shim or anti-squeal backing plate for quiet operation. Replacing brake pads promptly prevents scoring and heat damage to the more expensive brake discs, saving significantly on repair costs in the long run. Every part is dispatched with tracked delivery and a 14-day money-back guarantee with hassle-free returns.

Brake pad set buying guide

Why replace this part?

Brake pads are the primary friction component in your braking system. As they wear thin, braking performance deteriorates, increasing stopping distances and putting your safety at risk. Worn pads can also damage brake discs, leading to more expensive repairs.

Signs you need a replacement

  • Squealing or grinding noises when braking
  • increased stopping distances
  • brake pedal vibration or pulsation
  • dashboard warning light
  • visible pad thickness below 3mm
  • pulling to one side when braking

When to replace

Every 30,000–70,000 miles depending on driving conditions, pad material, and vehicle weight. City driving with frequent stops wears pads faster than motorway driving.

Installation difficulty:Moderate — requires basic tools and mechanical knowledge

About HELLA

HELLA, founded in 1899 in Lippstadt, Germany, is a global automotive lighting and electronics specialist now operating as FORVIA HELLA. HELLA specialises in headlamps, rear lights, signal lighting, sensors, actuators, and electronic control units. As an OE supplier to virtually all major car manufacturers, HELLA products represent the cutting edge of automotive lighting and electronic technology. With 125+ years of innovation in vehicle illumination and electronics, HELLA is the definitive choice for high-quality lighting and electronic component replacements.

Suitable cars

Equivalent products (200)

Show all 200 OE numbers
ABEC1G059ABEP
A.B.S.37568
A.B.S.37568OE
A.B.S.37923
A.B.S.P24076
A.B.S.P24076X
AISINBPFO1003
AKEBONOAN4481K
AKEBONOAN4481KE
AKEBONOEUR1306
AKRON-MALÒ1050245
AKRON-MALÒ1050997
APECPAD1503
APECPAD1503B
APECPD3089
ASHIKA500LL00
ASHUKI by PalidiumP11071
ATE13046072282
ATE13047072282
ATE607228
ATELD7228
AUGROS55513998
AUTOMOTOR FrancePBP0102
BARUMBA2314
BENDIX510526
BENDIX573201B
BENDIX BrakingBC1897
BOSCH098650A276
BOSCH0986BB0943
BOSCH0 986 TB2 939
BOSCH0986TB3184
BOSCH0986TB3192
BOSCHBP1080
Brake ENGINEERINGPA1695
BRAXISAA0044
BRECK241230070100
BREMBO07D43503
BREMBOP24076
BREMBOP24076E
BREMBOP24076N
BREMBOP24076X
BREMSENAXBP2181
CARPNT5521
CIFAM8226750
COBREQN1472
COBREQN1472C
COMLINEADB01591
COMLINEADB03971
COMLINEAEV03971
COMLINECBP03971
DAHLLP1967
DANAHERADP0132
DANAHERDBP1967
DBA AustraliaDB2296SS
DELPHILP196717B1
DELPHILP1967ND19B1
DELPHILP3345N18B1
DONPCP1044
Dr!ve+DP1010101130
DYNAMATRIXDBP1897
EBC BrakesDP1932
EBC BrakesDP21932
EBC BrakesDP22252
EBC BrakesDP31932C
EBC BrakesDP41932R
EBC BrakesDP42252R
EBC BrakesDP61932
EBC BrakesDPX2252
EBC BrakesPLK1590
EBC BrakesPLK1894
EUROBRAKE5502222568
EUROREPAR1617275480
EUROREPAR1635135680
EUROREPAR1643080980
FEBEST2101CA2F
FERODOFDB1897D
FERODOFDB1897S
FERODOFDB1897W
FERODOFDB4897D
FERODOFSL1897
FMSI-VERBAND8421D1306
FMSI-VERBANDD1306
FOMAR FrictionFO927181
FREMAXFBP1496
fri.tech.6910
FTE9001024
FTE9001866
FTE9010632£42.99
FTEBL2046A1
GALFERB1G10208892
GIRLING6116832
GIRLING6119602
HELLA355 012-891
HELLA355012891
HELLA8DB 355 012-891
HELLA PAGID355 012-891
HELLA PAGID355 019-881
HELLA PAGID355023931
HELLA PAGID355028291
HELLA PAGID355031091
HELLA PAGID355113821
HELLA PAGID355116221
HELLA PAGID355118831
HELLA PAGID355118832
HELLA PAGID355129161
HELLA PAGID355129491
HELLA PAGID8DB355012891
HELLA PAGID8DB355019881
HELLA PAGID8DB355023931
HELLA PAGID8DB355028291
HELLA PAGID8DB355031091
HERTH+BUSS JAKOPARTSJ3600824
Hi-QSP2101F
ICER181775£44.99
INTIMAMD8586
JAPANPARTSPAL00AF
JURATEKJCP1897
JURID573201JAS
JURID573201JD
JURID574009J
JURID575046JD
KAGER351043
KALE OTO RADYATÖR2412320305
KEY PARTSKBP1981
LPR05P1255£39.99
MAGNETI MARELLI363700201653
MAGNETI MARELLI363702161469
MAGNETI MARELLIT1653MM
MAPCO6853
MAPCO6853HPS
MASTER-SPORT GERMANY13046072282NSETMS
MAXGEAR191091
METELLI2206750
METZGER AUTOTEILE121900
MEYLE0252412319
MEYLE0252412319PD
MGA844
MINTEXMDB2860
MINTEXMDB82860
MINTEXMDK0234
MINTEXMDK0263
NAPAPBP7063
NiBKPN0462
NiBKPN0462S
NISSHINBONP5077
NK222568
NK224033
OPTIMAL12505
OPTIMALBP12505
PAGIDT1653
PAGID RacingT8056SP2001
PEX7879
QUINTON HAZELLBP1558
RAICAMRA08940
R BRAKERB1775
REMSA121900
RHIAG103628
RIDEX402B0052
ROADHOUSE2121900
SANGSIN BRAKESP2101F
STELLOX001088BSX
STELLOX001088SX
STOP573201S
SWAG22116123
SWAG50222017
S.Y.L3282
TEXTAR2412307
TEXTARTX0738
TOMEX BrakesTX1447
TRISCAN811010556
TRISCAN811017034
TRUSTING6910
TRWGDB1683£38.99
TRWGDB1960£37.99
TRWGDB8339AT
TRWGDB9005
TRWTRH1306
VAICOV258123

Brake pad set HELLA 8DB 355 012-891compatible car models

Car modelsFORD: GALAXY II (WA6), GALAXY MK II VAN (WA6), MONDEO IV (BA7), MONDEO IV Saloon (BA7), MONDEO IV Turnier (BA7), MONDEO IV Van, MONDEO V Hatchback (CE), MONDEO V Saloon (CD), MONDEO V Turnier (CF), S-MAX VAN (WA6) (+1 more); FORD AUSTRALIA: MONDEO Estate (MB, MC), MONDEO Hatchback (MA, MB, MC), MONDEO Saloon (MA, MB); LAND ROVER: FREELANDER 2 (L359), FREELANDER 2 VAN (L359); MG: MG HS (AS23); MG (SAIC): 6 Hatchback, GS, HS, PILOT; ROEWE (SAIC): ERX5, RX5; VOLVO: S60 II (134), S60 II Cross Country (134), S80 II (124), V60 I (155), V60 I Cross Country (157), V60 I Estate Van (155), V70 III (135)
Engines1.6 EcoBoost; 2.0; 1.0 EcoBoost; 1.6; 2.0 TDCi; 2.0 i 16V; 2.0 Si4 4x4; 2.2 TD4 4x4; 1.5 EHS Hybrid (CSA6463); 20T; 2.0 TGI; 1.5 20 T (SAS23); 500 PHEV; EV; 1.5 T (+6 more)
Year of manufacture2006-2022
Manufacturer article number (MPN)8DB 355 012-891
OE part numbers10203163, 10767908, 1 379 971, 1427386, 1 432 363, 1436498, 1 437 761, 1 458 247, 1461658, 1 566 232, 1 747 043, 1916756, 30778910, 3079354, 30793540, 307935400, 30793941, 31304129, 6G912K021A2A, 6G912K021A2B (+13 more)
Compatibility check

Loading vehicle data…

Please wait while we load vehicle compatibility information.
Description and what's included

HELLA 8db355012-891 Brake pad set. Article number of recommended accessories: 8DZ 355 201-271. Brake System: Teves. Height 1 [mm]: 66,6 mm. Height 2 [mm]: 72 mm. Thickness [mm]: 20,5 mm. Wear Warning Contact: 51. Weight [kg]: 2,2 kg. Width 1 [mm]: 155,1 mm

What's included:
  • 1x Set of brake pads (axle set)
  • Wear indicator wire (where applicable)
  • Mounting accessories (where applicable)
Shipping, returns, warranty

Free UK delivery on orders over £99.00. Tracked standard shipping.

  • Standard delivery: 5–9 business days
  • Order before 5pm — ships the next working day
  • Free returns within 14 days
  • All parts backed by manufacturer warranty

Warranty: 12-month manufacturer warranty on all parts. 14-day money-back guarantee if the part doesn't fit your vehicle.

Frequently Asked Questions

Is this Brake pad set compatible with my car?

This Brake pad set fits FORD, FORD AUSTRALIA, LAND ROVER, MG, MG (SAIC) and 3 more vehicles. Use the vehicle selector at the top of the page to check exact compatibility — enter your car's make, model, and engine for a confirmed fitment match. All fitment data is verified through TecDoc.

What specifications does this HELLA Brake pad set have?

This HELLA Brake pad set has the following specifications: Thickness [mm]: 20,5 mm; Weight [kg]: 2,2 kg; Height 1 [mm]: 66,6 mm; Height 2 [mm]: 72 mm; Wear Warning Contact: 51; Brake System: Teves. Check the full specifications table above for complete details.

What OE part numbers does this Brake pad set replace?

This Brake pad set replaces OE part numbers: 10203163, 10767908, 1 379 971, 1427386, 1 432 363, 1436498, 1 437 761, 1 458 247 and 25 more. Cross-reference these numbers with your vehicle's original part number to confirm compatibility.

How much does a Brake pad set cost?

Brake pad set prices vary depending on brand, specifications, and vehicle compatibility. Check the current price above for this HELLA Brake pad set. All parts come with our 14-day money-back guarantee.

How do I know when to replace my Brake pad set?

Common signs include squealing or grinding noises when braking, increased stopping distances, brake pedal vibration, or a dashboard warning light. Most brake pads should be inspected every 20,000 miles and replaced when pad thickness falls below 3mm.

What tools do I need to replace a Brake pad set?

Tools needed: floor jack and axle stands, lug wrench or 19mm socket, brake caliper wind-back tool (or C-clamp), 7mm hex / Torx socket for caliper bolts, brake cleaner spray, copper grease, torque wrench. Difficulty: Moderate DIY. Safety warning: Never compress the caliper piston without checking the brake fluid reservoir level will not overflow; brake fluid is corrosive -- keep it off painted surfaces and skin.

Can I use this part as a replacement for OE 10203163?

Yes, this HELLA Brake pad set is a direct replacement for OE part number 10203163. It is manufactured to meet or exceed original equipment specifications, ensuring proper fitment and performance. All cross-reference data is verified through TecDoc.
