CP247
Gallery
BrandDr!ve+
MPNDP1010.11.0124
OE refs4
SKU4948-DP1010.11.0124

Similar products

Customers also bought

Details

SpecificationValue
BrandDr!ve+
MPNdp1010.11.0124
CategoryBrake rotor
Fitting PositionFront Axle
Height [mm]35.3 mm
Brake Disc Thickness [mm]12.5 mm
Minimum thickness [mm]9.7 mm
Outer Diameter [mm]236 mm
Centering Diameter [mm]86 mm

OE numbers (4)

Search by this OE number to find compatible parts

Where this part fits

Original-fit position for OE 96455424. The red ring marks where this part installs on the vehicle.

ROTOR,FRT BRK — Spark Spark M200 (2005–2015) — HUB & DISC/FRONT
Spark Spark M200 (2005–2015) · HUB & DISC/FRONTPosition 6

About this product

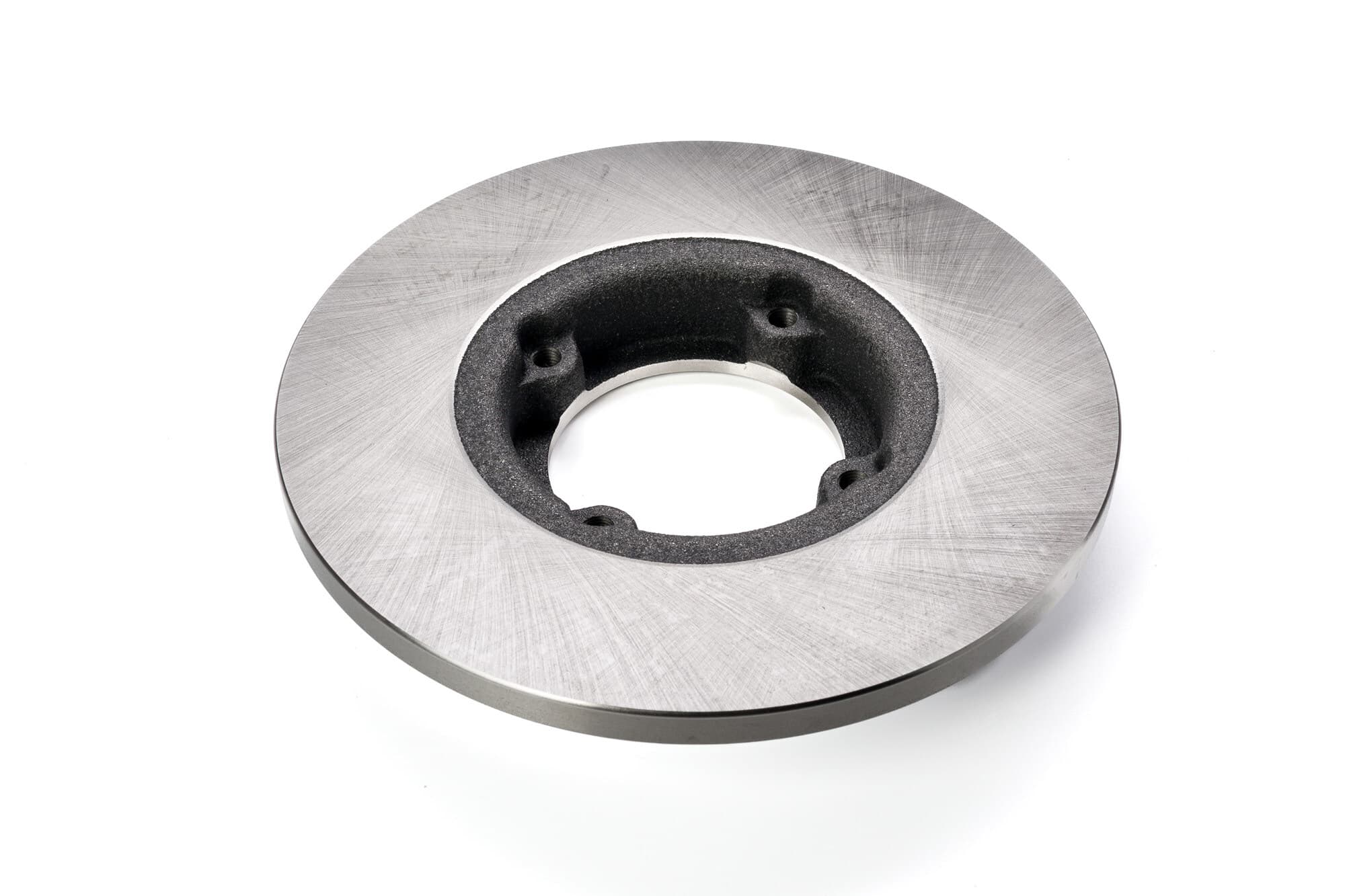

Dr!ve+ brake disc (DP1010.11.0124) is precision-machined from high-grade grey cast iron for uniform heat dissipation and resistance to thermal cracking under heavy braking. Key dimensional data — Fitting Position: Front Axle, Height [mm]: 35, Cast Iron mm, Brake Disc Type: Steel, Brake Disc Thickness [mm]: Zinc, Rubber mm — ensures the rotor geometry meets OEM tolerances for run-out, thickness, and parallelism right out of the box. Compatible with CHEVROLET, DAEWOO vehicles; the hub-centric bore and bolt-circle pattern match the original specification exactly. Direct replacement for OE references: 0311014390, 0311014395, 08782210, 0986478712 and 130 more. Dr!ve+ rotors are checked for surface hardness and dynamic balance before dispatch, keeping braking distances predictable throughout the service life of the disc. Brake discs generally last 50,000–70,000 miles, though this varies with driving habits, terrain, and pad compound — heavy urban driving or towing shortens disc life considerably. Warning signs of worn discs include visible scoring or lip formation on the friction surface, vibration through the steering wheel under braking, and a persistent grinding noise even with new pads fitted. Disc replacement is an intermediate DIY task; you will need a torque wrench, a breaker bar (some hub-to-disc retaining screws seize over time), and a jack with axle stands — budget 1–2 hours per axle. When selecting brake discs, check that the disc type (vented or solid) matches the original, and look for a protective anti-corrosion coating on the hub and non-friction surfaces to prevent rust jacking. Always replace discs in pairs (both sides of the same axle) to maintain even braking balance, and bed in new discs with the manufacturer's recommended gentle-braking procedure for the first 200 miles. Every part is dispatched with tracked delivery and a 14-day money-back guarantee with hassle-free returns.

Brake rotor buying guide

Why replace this part?

Brake discs work together with brake pads to bring your vehicle to a stop. Over time, discs wear down, develop grooves, or can warp from heat. Worn or warped discs reduce braking efficiency and can cause dangerous vibrations at speed.

Signs you need a replacement

  • Pulsating brake pedal
  • visible grooves or scoring on the disc surface
  • vibration during braking
  • grinding noise even with new pads
  • disc thickness below minimum specification

When to replace

Every 50,000–80,000 miles. Always measure disc thickness during pad changes — most discs have a minimum thickness stamped on the hub.

Installation difficulty:Moderate — requires basic tools and mechanical knowledge

Suitable cars

Equivalent products (137)

Show all 137 OE numbers
ABAKUS23103144
A.B.S.17067
ACDelcoAC2385D
ACKOJAA5140002
ACKOJAA5140002
AKRON-MALÒ1110559
AP15378
APECDSK301
ASHIKA600W004
ASHIKA600W004C
ASHUKI by Palidium09909090
ATE24011301951
BENDIX562138B
BENDIX562138BC
BORG & BECKBBD4136
BOSCH0986478712
BOSCH0986479898
BOSCH0986479R81
BOSCH0986BB4297
BRADI1130114
Brake ENGINEERINGDI955941
BRAXISAE0063
BRECOBS7587
BREMBO08782210
BREMBO8782210
CAR142990
CARHPD990
CHAMPION562138CH
COMLINEADC1009
DBA AustraliaDBA897
DIAMAXN08137
DONPCD21232
EUROBRAKE5815205001
EUROBRAKE5815315001
EUROREPAR1618870180
EUROREPAR1687790380
FERODODDF1076
FERODODDF10761
FERODODDF1076X
FIRST LINEFBD1091
FRIGAIRDC31101
FTE9072594£14.99
FTE9082407£17.99
FTEBS5042
FTEBS5042B
GALFERB1G21301951
GIRLING6041233
HELLA8DD355107011
HELLA PAGID8DD355107011
HERTH+BUSS JAKOPARTSJ3300909
HERTH+BUSS JAKOPARTSJ3300918
ICER78BD43922
JAPANPARTSDIW04
JAPANPARTSDIW04C
JAPANPARTSDIW04JM
JAPKO60W04
JAPKO60W04C
JURID562138J
KAVO PARTSBR1204C
KAWE660600
LPRO1441P£30.99
MAGNETI MARELLI353611301140
MAGNETI MARELLI431602040110
MANDOMBC030014
MAPCO15500
MASTER-SPORT GERMANY24011301951PCSMS
MASTER-SPORT GERMANY24011301951PCSMSP
MASTER-SPORT GERMANY24011301951SETMS
MASTER-SPORT GERMANY24011301951SETMSP
MAXGEAR190702
MAXGEAR190702MAX
MAXGEAR190702SPORT
METELLI230597
METELLI230597C
METZGER AUTOTEILE15378
METZGER AUTOTEILE6110713
MEYLE29155210001
MGAD1343
MINTEXMDC1459
MOTAQUIPLVBE280
NationalNBD981
NIPPARTSJ3300909
NK139928
NK205001
NK315001
NPSD330O04
OBTEC A/S141805
Omnicraft2134077
OPTIMALBS6300
OPTIMALBS6300C
PAGID50280
PEX140887
PILENGA5860
QH Benelux57855
QUAROQD5046
QUINTON HAZELL660600
QUINTON HAZELLBDC5042
QUINTON HAZELLBSF5042
RAICAMRD00970
RAP BRAKESRD0614
RED-LINE26DW001
REMSA660600
REMYRAD1197C
RIDEX82B0715
ROADHOUSE660600
ROULUNDS RUBBERD2385
RUVILLEBFR134810
sbs1815205001
sbs1815315001
SKFVKBD80600S2
STELLOX60205001KSX
STELLOX60205001SX
ST-TEMPLIN0311014390
ST-TEMPLIN0311014395
SWAG89917509
TEXTAR92100300
TEXTAR92100303
TEXTAR98200100301
TOMEX BrakesTX7033
TRISCAN812024133
TRISCAN812024133C
TRUSTINGDF196
TRWDF4123£28.99
VALEO197259
VALEO297259
VALEO297742
WOKINGD660600
WOKINGP660600
ZIMMERMANN185395000

Brake rotor Dr!ve+ DP1010.11.0124compatible car models

Car modelsCHEVROLET: MATIZ (M200, M250), SPARK, SPARK (M150); DAEWOO: MATIZ (M100, M150), MATIZ (M200, M250)
Engines0.8
Year of manufacture1998-2018
Manufacturer article number (MPN)DP1010.11.0124
OE part numbers96254392, 96284392, 96320531, 96455424
Compatibility check

Loading vehicle data…

Please wait while we load vehicle compatibility information.
Description and what's included

Dr!ve+ dp1010.11.0124 Brake rotor. Brake Disc Thickness [mm]: 12,5 mm. Brake Disc Type: 1. Centering Diameter [mm]: 86 mm. Fitting Position: VA. Height [mm]: 35,3 mm. Minimum thickness [mm]: 9,7 mm. Number of bores: 4. Outer Diameter [mm]: 236 mm

What's included:
  • 1x Brake disc
Shipping, returns, warranty

Free UK delivery on orders over £99.00. Tracked standard shipping.

  • Standard delivery: 5–9 business days
  • Order before 5pm — ships the next working day
  • Free returns within 14 days
  • All parts backed by manufacturer warranty

Warranty: 12-month manufacturer warranty on all parts. 14-day money-back guarantee if the part doesn't fit your vehicle.

Frequently Asked Questions

Is this Brake rotor compatible with my car?

This Brake rotor fits CHEVROLET, DAEWOO vehicles. Use the vehicle selector at the top of the page to check exact compatibility — enter your car's make, model, and engine for a confirmed fitment match. All fitment data is verified through TecDoc.

What specifications does this Dr!ve+ Brake rotor have?

This Dr!ve+ Brake rotor has the following specifications: Fitting Position: VA; Height [mm]: 35,3 mm; Brake Disc Type: 1; Brake Disc Thickness [mm]: 12,5 mm; Minimum thickness [mm]: 9,7 mm; Number of bores: 4. Check the full specifications table above for complete details.

What OE part numbers does this Brake rotor replace?

This Brake rotor replaces OE part numbers: 96254392, 96284392, 96320531, 96455424. Cross-reference these numbers with your vehicle's original part number to confirm compatibility.

How much does a Brake rotor cost?

This Dr!ve+ Brake rotor is available for £21.99. Brake rotor prices vary depending on brand, specifications, and vehicle compatibility. Dr!ve+ parts offer a balance of quality and value, backed by our 14-day money-back guarantee.

How do I know when to replace my Brake rotor?

Watch for pulsating brake pedal, visible grooves or scoring on the disc surface, vibration during braking, or a grinding noise. Brake discs typically last 50,000-80,000 miles but should be measured for minimum thickness during pad changes.

What tools do I need to replace a Brake rotor?

Tools needed: floor jack and axle stands, lug wrench, 7mm hex / Torx caliper bolt socket, pry bar or disc puller, wire brush, brake cleaner, copper grease, torque wrench (wheel bolts to manufacturer spec). Difficulty: Moderate DIY. Safety warning: Do not drive the vehicle until both discs on the same axle are replaced and the brakes have been bedded in. Brake dust may contain harmful particles -- wear a dust mask.

Can I use this part as a replacement for OE 96254392?

Yes, this Dr!ve+ Brake rotor is a direct replacement for OE part number 96254392. It is manufactured to meet or exceed original equipment specifications, ensuring proper fitment and performance. All cross-reference data is verified through TecDoc.
