CP247
Gallery
BrandBREMBO
MPN08.7724.20
OE refs5
SKU0065-08.7724.20
GTIN / EAN8020584772423

Similar products

Customers also bought

Details

SpecificationValue
BrandBREMBO
MPN08.7724.20
CategoryBrake rotor
Height [mm]97 mm
Brake Disc Thickness [mm]12 mm
Minimum thickness [mm]10 mm
Outer Diameter [mm]258 mm
Centering Diameter [mm]85 mm
Tightening Torque [Nm]130 Nm

OE numbers (5)

Search by this OE number to find compatible parts

Where this part fits

Original-fit position for OE 9014230812.

ROTOR DISC — Brakes
BrakesPosition main

About this product

BREMBO brake disc (08.7724.20) is precision-machined from high-grade grey cast iron for uniform heat dissipation and resistance to thermal cracking under heavy braking. Key dimensional data — Height [mm]: 97 mm, Brake Disc Type: Steel, Brake Disc Thickness [mm]: Zinc mm, Minimum thickness [mm]: Brass mm — ensures the rotor geometry meets OEM tolerances for run-out, thickness, and parallelism right out of the box. Compatible with MERCEDES-BENZ, VW vehicles; the hub-centric bore and bolt-circle pattern match the original specification exactly. Direct replacement for OE references: 0155232075, 09102, 0986478863, 14811 and 36 more. BREMBO rotors are checked for surface hardness and dynamic balance before dispatch, keeping braking distances predictable throughout the service life of the disc. Brake discs generally last 50,000–70,000 miles, though this varies with driving habits, terrain, and pad compound — heavy urban driving or towing shortens disc life considerably. Warning signs of worn discs include visible scoring or lip formation on the friction surface, vibration through the steering wheel under braking, and a persistent grinding noise even with new pads fitted. Disc replacement is an intermediate DIY task; you will need a torque wrench, a breaker bar (some hub-to-disc retaining screws seize over time), and a jack with axle stands — budget 1–2 hours per axle. When selecting brake discs, check that the disc type (vented or solid) matches the original, and look for a protective anti-corrosion coating on the hub and non-friction surfaces to prevent rust jacking. Always replace discs in pairs (both sides of the same axle) to maintain even braking balance, and bed in new discs with the manufacturer's recommended gentle-braking procedure for the first 200 miles. Every part is dispatched with tracked delivery and a 14-day money-back guarantee with hassle-free returns.

Brake rotor buying guide

Why replace this part?

Brake discs work together with brake pads to bring your vehicle to a stop. Over time, discs wear down, develop grooves, or can warp from heat. Worn or warped discs reduce braking efficiency and can cause dangerous vibrations at speed.

Signs you need a replacement

  • Pulsating brake pedal
  • visible grooves or scoring on the disc surface
  • vibration during braking
  • grinding noise even with new pads
  • disc thickness below minimum specification

When to replace

Every 50,000–80,000 miles. Always measure disc thickness during pad changes — most discs have a minimum thickness stamped on the hub.

Installation difficulty:Moderate — requires basic tools and mechanical knowledge

About BREMBO

Brembo S.p.A., founded in 1961 in Bergamo, Italy, is the world's leading manufacturer of high-performance braking systems. Brembo specialises in brake discs, brake pads, brake calipers, and complete braking kits for road and motorsport applications. As the OE supplier to Ferrari, Porsche, Lamborghini, BMW M, and AMG, Brembo represents the pinnacle of braking performance. From Formula 1 to everyday driving, choosing Brembo means choosing race-proven stopping power combined with Italian engineering excellence.

Suitable cars

Equivalent products (35)

Show all 35 OE numbers
AP14811
APECDSK797
ATE24011201421
ATE24111201421
BENDIX562156B
BOSCH0986478863
Brake ENGINEERINGDI955554
Brake ENGINEERINGDI956328
BRECOBS 7610
JURID562156J
JURID569120J
METELLI230491
MEYLE0155232075
MINTEXMDC1074
NK203337
NK203395
NK313395
PAGID50309
PAGID54375
QUINTON HAZELLBDC4699
QUINTON HAZELLMBD4699
sbs1815203337
sbs1815203395
sbs1815313395
TEXTAR92105200
TEXTAR92137500
TRWDF4087S£48.99
VALEO197033
ZIMMERMANN400646800
ZIMMERMANN400646820

Brake rotor BREMBO 08.7724.20compatible car models

Car modelsMERCEDES-BENZ: G-CLASS Cabrio (W463), G-CLASS (W463), SPRINTER 2-t Bus (B901, B902), SPRINTER 2-t Platform/Chassis (B901, B902), SPRINTER 2-t Van (B901, B902), SPRINTER 3-t Bus (B903), SPRINTER 3-t Platform/Chassis (B903), SPRINTER 3-t Van (B903), SPRINTER 4-t Bus (B904), SPRINTER 4-t Platform/Chassis (B904) (+1 more); VW: LT 28-35 II Bus (2DB, 2DE, 2DK), LT 28-46 II Platform/Chassis (2DC, 2DF, 2DG, 2DL, 2DM), LT 28-46 II Van (2DA, 2DD, 2DH)
EnginesG 300 TD (463.308); 250 GD (463.324, 463.325); 208 CDI (901.671, 902.671, 902.672); 208 CDI (901.611, 901.612, 901.621, 902.611, 902.612,...; 208 CDI (901.661, 901.662, 902.661, 902.662); 308 CDI (903.671, 903.672, 903.673); 308 CDI (903.611, 903.612, 903.613, 903.621, 903.622,...; 308 CDI (903.661, 903.662, 903.663); 408 CDI (904.662, 904.663); 408 CDI; 2.3
Year of manufacture1989-2018
Manufacturer article number (MPN)08.7724.20
OE part numbers2D0615601C, 9014230812, 9014231012, A9014230812, A9014231012
Compatibility check

Loading vehicle data…

Please wait while we load vehicle compatibility information.
Description and what's included

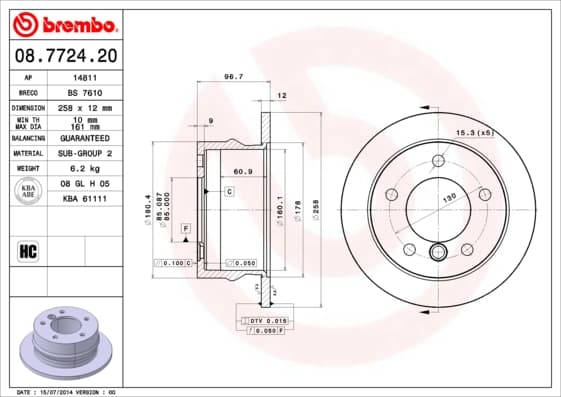

BREMBO 08.7724.20 PRIME LINE. Brake Disc Thickness [mm]: 12 mm. Brake Disc Type: 1. Centering Diameter [mm]: 85 mm. Height [mm]: 97 mm. Machining: 9. Minimum thickness [mm]: 10 mm. Number of Holes: 5. Outer Diameter [mm]: 258 mm

What's included:
  • 1x Brake disc
Shipping, returns, warranty

Free UK delivery on orders over £99.00. Tracked standard shipping.

  • Standard delivery: 5–9 business days
  • Order before 5pm — ships the next working day
  • Free returns within 14 days
  • All parts backed by manufacturer warranty

Warranty: 12-month manufacturer warranty on all parts. 14-day money-back guarantee if the part doesn't fit your vehicle.

Frequently Asked Questions

Is this Brake rotor compatible with my car?

This Brake rotor fits MERCEDES-BENZ, VW vehicles. Use the vehicle selector at the top of the page to check exact compatibility — enter your car's make, model, and engine for a confirmed fitment match. All fitment data is verified through TecDoc.

What specifications does this BREMBO Brake rotor have?

This BREMBO Brake rotor has the following specifications: Height [mm]: 97 mm; Brake Disc Type: 1; Brake Disc Thickness [mm]: 12 mm; Minimum thickness [mm]: 10 mm; Machining: 9; Outer Diameter [mm]: 258 mm. Check the full specifications table above for complete details.

What OE part numbers does this Brake rotor replace?

This Brake rotor replaces OE part numbers: 2D0615601C, 9014230812, 9014231012, A9014230812, A9014231012. Cross-reference these numbers with your vehicle's original part number to confirm compatibility.

How much does a Brake rotor cost?

This BREMBO Brake rotor is available for £43.99. Brake rotor prices vary depending on brand, specifications, and vehicle compatibility. BREMBO parts offer a balance of quality and value, backed by our 14-day money-back guarantee.

How do I know when to replace my Brake rotor?

Watch for pulsating brake pedal, visible grooves or scoring on the disc surface, vibration during braking, or a grinding noise. Brake discs typically last 50,000-80,000 miles but should be measured for minimum thickness during pad changes.

What tools do I need to replace a Brake rotor?

Tools needed: floor jack and axle stands, lug wrench, 7mm hex / Torx caliper bolt socket, pry bar or disc puller, wire brush, brake cleaner, copper grease, torque wrench (wheel bolts to manufacturer spec). Difficulty: Moderate DIY. Safety warning: Do not drive the vehicle until both discs on the same axle are replaced and the brakes have been bedded in. Brake dust may contain harmful particles -- wear a dust mask.

Can I use this part as a replacement for OE 2D0615601C?

Yes, this BREMBO Brake rotor is a direct replacement for OE part number 2D0615601C. It is manufactured to meet or exceed original equipment specifications, ensuring proper fitment and performance. All cross-reference data is verified through TecDoc.
