BrandBREMBO
MPN09.A229.11
OE refs2
SKU0065-09.A229.11
GTIN / EAN8020584025604

Similar products

Customers also bought

Details

SpecificationValue
BrandBREMBO
MPN09.a229.11
CategoryBrake rotor
Height [mm]91 mm
Brake Disc Thickness [mm]25 mm
Minimum thickness [mm]22 mm
Outer Diameter [mm]297 mm
Centering Diameter [mm]70 mm
Tightening Torque [Nm]140 Nm

OE numbers (2)

Search by this OE number to find compatible parts

About this product

BREMBO brake disc (09.A229.11) is precision-machined from high-grade grey cast iron for uniform heat dissipation and resistance to thermal cracking under heavy braking. Key dimensional data — Height [mm]: 91 mm, Brake Disc Type: Cast Iron, Brake Disc Thickness [mm]: 25 mm, Minimum thickness [mm]: 22 mm — ensures the rotor geometry meets OEM tolerances for run-out, thickness, and parallelism right out of the box. Compatible with LAND ROVER vehicles; the hub-centric bore and bolt-circle pattern match the original specification exactly. Direct replacement for OE references: 0832947, 0986479146, 1815204022, 1815314022 and 31 more. BREMBO rotors are checked for surface hardness and dynamic balance before dispatch, keeping braking distances predictable throughout the service life of the disc. Brake discs generally last 50,000–70,000 miles, though this varies with driving habits, terrain, and pad compound — heavy urban driving or towing shortens disc life considerably. Warning signs of worn discs include visible scoring or lip formation on the friction surface, vibration through the steering wheel under braking, and a persistent grinding noise even with new pads fitted. Disc replacement is an intermediate DIY task; you will need a torque wrench, a breaker bar (some hub-to-disc retaining screws seize over time), and a jack with axle stands — budget 1–2 hours per axle. When selecting brake discs, check that the disc type (vented or solid) matches the original, and look for a protective anti-corrosion coating on the hub and non-friction surfaces to prevent rust jacking. Always replace discs in pairs (both sides of the same axle) to maintain even braking balance, and bed in new discs with the manufacturer's recommended gentle-braking procedure for the first 200 miles. Every part is dispatched with tracked delivery and a 14-day money-back guarantee with hassle-free returns.

Brake rotor buying guide

Why replace this part?

Brake discs work together with brake pads to bring your vehicle to a stop. Over time, discs wear down, develop grooves, or can warp from heat. Worn or warped discs reduce braking efficiency and can cause dangerous vibrations at speed.

Signs you need a replacement

  • Pulsating brake pedal
  • visible grooves or scoring on the disc surface
  • vibration during braking
  • grinding noise even with new pads
  • disc thickness below minimum specification

When to replace

Every 50,000–80,000 miles. Always measure disc thickness during pad changes — most discs have a minimum thickness stamped on the hub.

Installation difficulty:Moderate — requires basic tools and mechanical knowledge

About BREMBO

Brembo S.p.A., founded in 1961 in Bergamo, Italy, is the world's leading manufacturer of high-performance braking systems. Brembo specialises in brake discs, brake pads, brake calipers, and complete braking kits for road and motorsport applications. As the OE supplier to Ferrari, Porsche, Lamborghini, BMW M, and AMG, Brembo represents the pinnacle of braking performance. From Formula 1 to everyday driving, choosing Brembo means choosing race-proven stopping power combined with Italian engineering excellence.

Suitable cars

Equivalent products (33)

Show all 33 OE numbers
AIMCO34253
AP25112 V
ATE24012501761
ATE24112501761
ATECW25176
BECK/ARNLEY0832947
BOSCH0986479146
Brake ENGINEERINGDI955856
BRECOBV 8721
DURABR34253
FERODODDF1379
FERODODDF1379C
FERODODDF1379C1
MEYLE53835210002PD
MINTEXMDC1445
NK204022
NK314022
PAGID54297
QUINTON HAZELLBDC5204
QUINTON HAZELLMBD5204
RAYBESTOS980273
sbs1815204022
sbs1815314022
TEXTAR92129705
TRWDF4194BPS
TRWDF4194S£63.99
WAGNERBD126319
ZIMMERMANN450522120
ZIMMERMANN450522152

Brake rotor BREMBO 09.A229.11compatible car models

Car modelsLAND ROVER: DISCOVERY II (L318)
Engines2.5 Td5 4x4
Year of manufacture1998-2004
Manufacturer article number (MPN)09.A229.11
OE part numbersANR4582, SDB000380
Compatibility check

Loading vehicle data…

Please wait while we load vehicle compatibility information.
Description and what's included

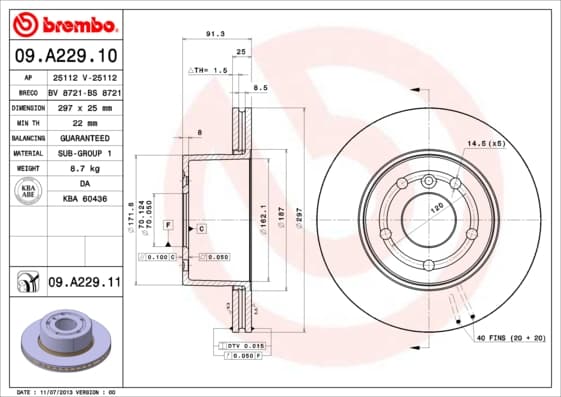

BREMBO 09.a229.11 PRIME LINE - UV Coated. Brake Disc Thickness [mm]: 25 mm. Brake Disc Type: 3. Centering Diameter [mm]: 70 mm. Height [mm]: 91 mm. Minimum thickness [mm]: 22 mm. Number of Holes: 5. Outer Diameter [mm]: 297 mm. Surface: 37

What's included:
  • 1x Brake disc
Shipping, returns, warranty

Free UK delivery on orders over £99.00. Tracked standard shipping.

  • Standard delivery: 5–9 business days
  • Order before 5pm — ships the next working day
  • Free returns within 14 days
  • All parts backed by manufacturer warranty

Warranty: 12-month manufacturer warranty on all parts. 14-day money-back guarantee if the part doesn't fit your vehicle.

Frequently Asked Questions

Is this Brake rotor compatible with my car?

This Brake rotor fits LAND ROVER vehicles. Use the vehicle selector at the top of the page to check exact compatibility — enter your car's make, model, and engine for a confirmed fitment match. All fitment data is verified through TecDoc.

What specifications does this BREMBO Brake rotor have?

This BREMBO Brake rotor has the following specifications: Height [mm]: 91 mm; Brake Disc Type: 3; Brake Disc Thickness [mm]: 25 mm; Minimum thickness [mm]: 22 mm; Outer Diameter [mm]: 297 mm; Number of Holes: 5. Check the full specifications table above for complete details.

What OE part numbers does this Brake rotor replace?

This Brake rotor replaces OE part numbers: ANR4582, SDB000380. Cross-reference these numbers with your vehicle's original part number to confirm compatibility.

How much does a Brake rotor cost?

This BREMBO Brake rotor is available for £54.99. Brake rotor prices vary depending on brand, specifications, and vehicle compatibility. BREMBO parts offer a balance of quality and value, backed by our 14-day money-back guarantee.

How do I know when to replace my Brake rotor?

Watch for pulsating brake pedal, visible grooves or scoring on the disc surface, vibration during braking, or a grinding noise. Brake discs typically last 50,000-80,000 miles but should be measured for minimum thickness during pad changes.

What tools do I need to replace a Brake rotor?

Tools needed: floor jack and axle stands, lug wrench, 7mm hex / Torx caliper bolt socket, pry bar or disc puller, wire brush, brake cleaner, copper grease, torque wrench (wheel bolts to manufacturer spec). Difficulty: Moderate DIY. Safety warning: Do not drive the vehicle until both discs on the same axle are replaced and the brakes have been bedded in. Brake dust may contain harmful particles -- wear a dust mask.

Can I use this part as a replacement for OE ANR4582?

Yes, this BREMBO Brake rotor is a direct replacement for OE part number ANR4582. It is manufactured to meet or exceed original equipment specifications, ensuring proper fitment and performance. All cross-reference data is verified through TecDoc.
