24.0223-0009.1EAN 4006633108980

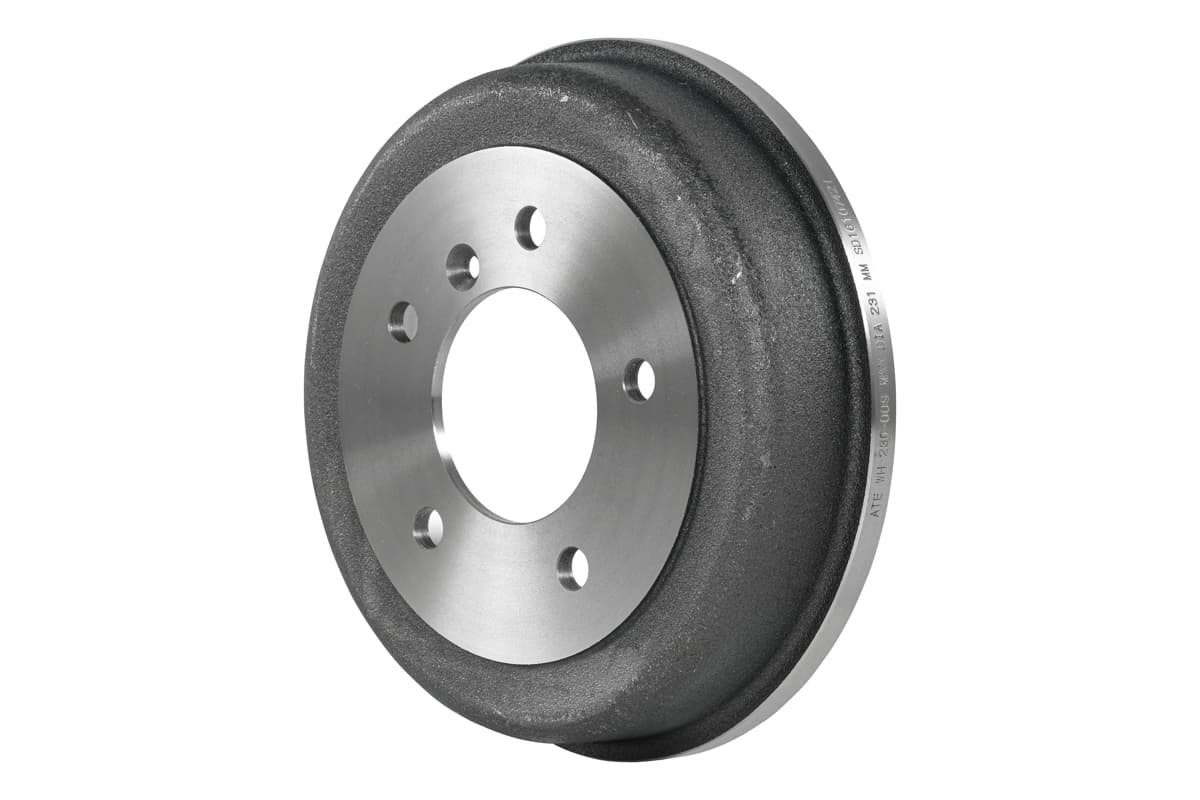

Brake Drum ATE 24.0223-0009.1

Brake Drum ATE 24.0223-0009.1. Fits 3 car models (MERCEDES-BENZ), 1977–1996. Replaces 2 OE numbers.

Your car

Does this fit your car?

Choose your car and we will check this part against the manufacturer's data.

Out of stockPrice incl. VAT

£66.99 Save £26.00 (39%)

Buy Now

  • Delivery time is not yet confirmed.
  • Delivery £5.99. Free from £50.00.
  • 14-day money-back guarantee
  • Earn 40 points on this item

Specification. From the manufacturer's data.

Brand
ATE
Bore Diameter [mm]
15.0 mm
Outer brake drum diameter [mm]
266.0 mm
max. brake drum reboring dimension [mm]
231.0 mm
Inner brake drum height [mm]
43.0 mm
Total brake drum height [mm]
73.0 mm
Bolt Hole Circle Ø [mm]
130.0 mm
Support plate diameter [mm]
85.0 mm
Inner brake drum diameter [mm]
230.0 mm
Category
Brake Drum
MPN
24.0223-0009.1
SKU
0003-24.0223-0009.1
GTIN / EAN
4006633108980
What's included
1x Brake Drum

OE numbers. The originals this part replaces.

Numbers the vehicle makers and other brands use for this part. Only a confirmed OE number links to its own page; other brands' equivalents are under “Equivalent products”.

Where this part fits

Original-fit position for OE 6014235101.

DRUM BRAKE — Brakes
BrakesPosition main

Equivalent products. They fit in the same place.

4 available · 24 numbers

All Brake Drum
All 24 cross-reference numbers

Numbers other makers give for this part. They are aftermarket numbers, not the vehicle maker's OE numbers; a linked number is one we sell.

  • BENDIX 329141B
  • BOSCH 0 986 477 101
  • BREMBO 14.3260.10
  • CIFAM 700-220
  • DELPHI BF168
  • FEBI BILSTEIN 18491
  • FTE BT256
  • HELLA 8DT 355 301-151
  • HELLA PAGID 8DT 355 301-151
  • JURID 82 850 04 016
  • JURID 329141J
  • METELLI 18-0220
  • MINTEX MBD113
  • NK 263301
  • OMC 100661
  • PAGID 62102
  • PEX 15.0106
  • QUINTON HAZELL BDR256
  • QUINTON HAZELL BTF256
  • SEBRO 40 16
  • TEXTAR 98100 0055 0 1
  • TEXTAR 94005500
  • TRW DB4038
  • ZIMMERMANN 400.5070.00

Compatible cars. MERCEDES-BENZ, 3 models.

Matched from the manufacturer's data. Production years 1977–1996.

Brake Drum for MERCEDES-BENZ

Models ATE 24.0223-0009.1 fits
ModelEnginesYears
MERCEDES-BENZ3 models
MERCEDES-BENZ T1 Bus (B601)207 D 2.4 (601.371, 601.372, 601.376, 601.377), 207 D 2.4 (601.371, 601.376, 601.377), 208 2.3, 208 D 2.3, 208 D 2.3 (601.371, 601.372, 601.376, 601.377), 209 D 2.9, 210 2.3, 210 D 2.81977–1996
MERCEDES-BENZ T1 Platform/Chassis (601)207 D 2.4, 208 D 2.3, 209 D 2.9, 210 2.3, 210 D 2.8, 210 D 2.91977–1996
MERCEDES-BENZ T1 Van (601, 611)207 D 2.4, 208 D 2.3, 209 D 2.9, 210 2.3, 210 D 2.81977–1996

Always verify compatibility with your vehicle before ordering.
