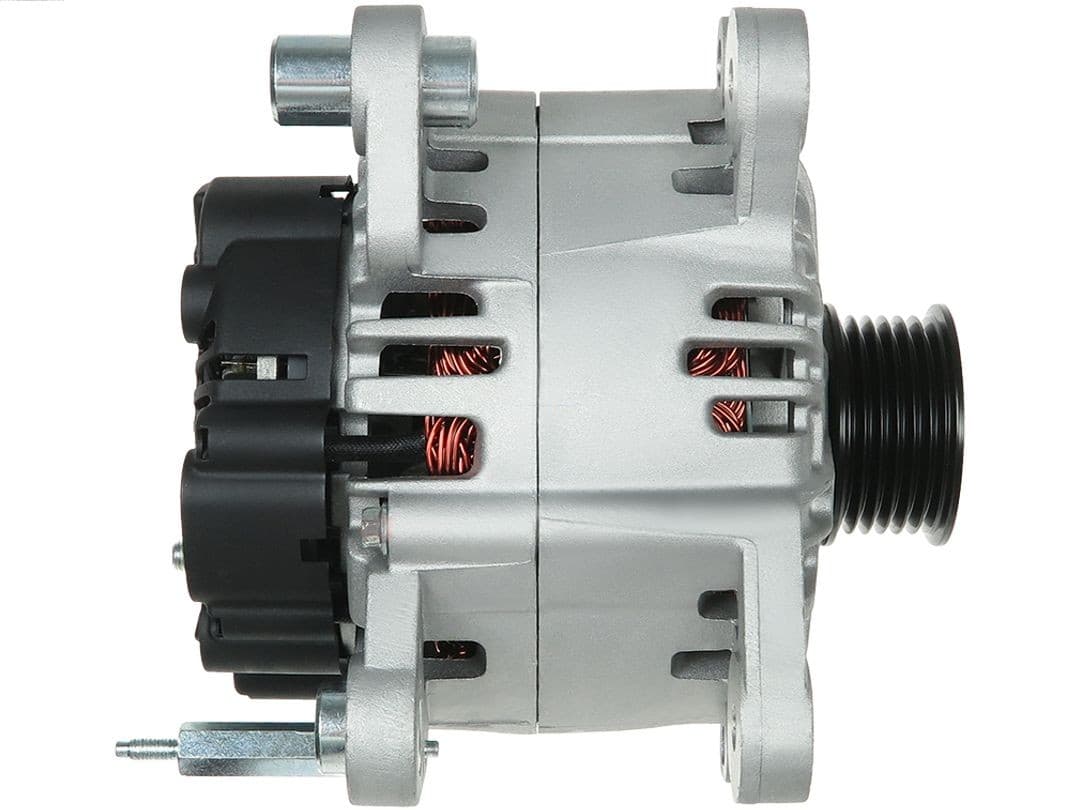

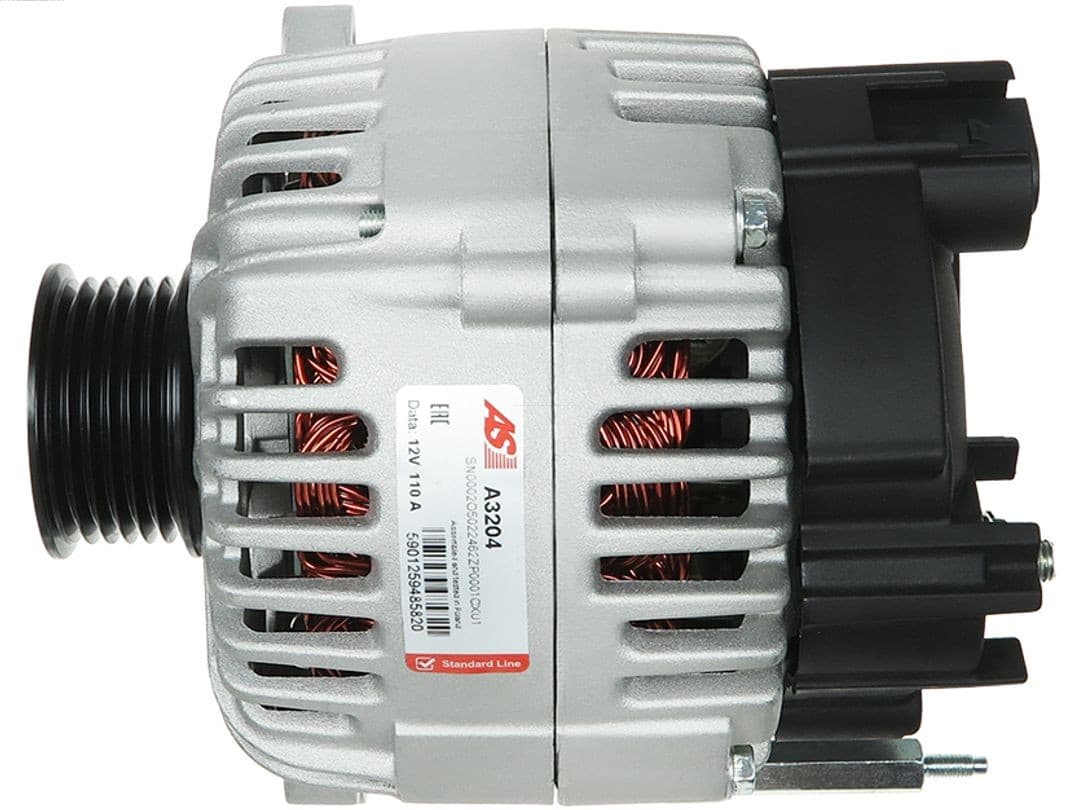

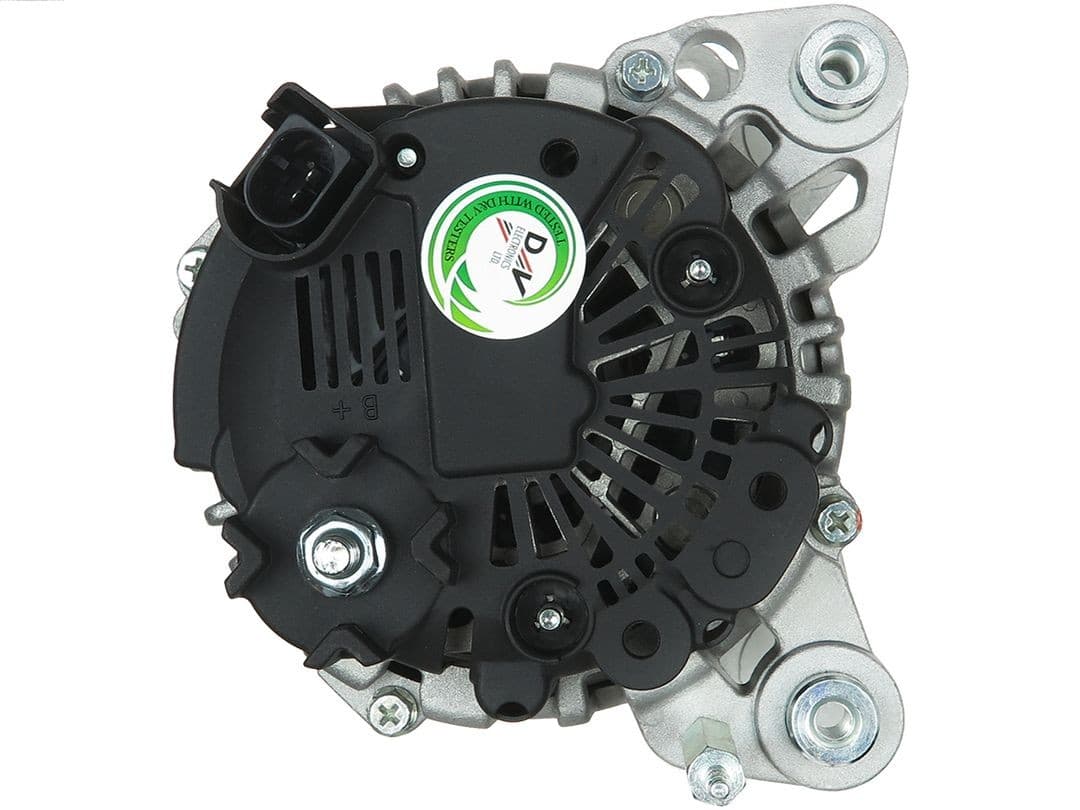

Brand new AS-PL imageBrand new AS-PL imageBrand new AS-PL imageBrand new AS-PL imageBrand new AS-PL imageBrand new AS-PL image
A3204EAN 5901259485820

Alternator AS-PL A3204

Power generator AS-PL A3204. Fits 37 car models (AUDI, SEAT, SKODA +1), 2001–2022. Replaces 16 OE numbers.

Your car

Does this fit your car?

Choose your car and we will check this part against the manufacturer's data.

Out of stockPrice incl. VAT

£180.99 Save £45.00 (25%)

Buy Now

  • Delivery in 4–8 working days.
  • Delivery £5.99. Free from £50.00.
  • 14-day money-back guarantee
  • Earn 135 points on this item

Specification. From the manufacturer's data.

Brand
AS-PL
Category
Power generator
Voltage [V]
12 V
Alternator Charging Current [A]
110 A
Quality
STANDARD LINE
Version
TG11C015
MPN
A3204
SKU
4843-A3204
GTIN / EAN
5901259485820
What's included
1x Power generator

What's in the kit

This kit ships with 73 factory-matched components. Each part below is supplied as part of the kit; click any linked MPN to view that component on its own.

#Part numberComponentQty
1ABE9003
Bearing
Quality
STANDARD LINE
Height [mm]
11,00 mm
Inner Diameter [mm]
15,00 mm
Outer Diameter [mm]
35,00 mm
1
2ABE9003(NTN)
Bearing
Quality
PREMIUM LINE
Height [mm]
11,00 mm
Inner Diameter [mm]
15,00 mm
Outer Diameter [mm]
35,00 mm
1
3ABE9003(NSK)
Bearing
Quality
PREMIUM LINE
Height [mm]
11,00 mm
Inner Diameter [mm]
15,00 mm
Outer Diameter [mm]
35,00 mm
1
4ABE9003(BULK)
Bearing
Quality
STANDARD LINE
Height [mm]
11,00 mm
Inner Diameter [mm]
15,00 mm
Outer Diameter [mm]
35,00 mm
1
5ABE9003(NACHI)
Bearing
Quality
PREMIUM LINE
Height [mm]
11,00 mm
Inner Diameter [mm]
15,00 mm
Outer Diameter [mm]
35,00 mm
1
6ABE9003(KOYO)(BULK)
Bearing
Quality
PREMIUM LINE
Height [mm]
11,00 mm
Inner Diameter [mm]
15,00 mm
Outer Diameter [mm]
35,00 mm
1
7ABE9003(KOYO)
Bearing
Quality
PREMIUM LINE
Height [mm]
11,00 mm
Inner Diameter [mm]
15,00 mm
Outer Diameter [mm]
35,00 mm
1
8ABE9006
Bearing
Quality
STANDARD LINE
Height [mm]
14,00 mm
Inner Diameter [mm]
17,00 mm
Outer Diameter [mm]
47,00 mm
1
9ABE9006(NTN)
Bearing
Quality
PREMIUM LINE
Height [mm]
14,00 mm
Inner Diameter [mm]
17,00 mm
Outer Diameter [mm]
47,00 mm
1
10ABE9006(NSK)
Bearing
Quality
PREMIUM LINE
Height [mm]
14,00 mm
Inner Diameter [mm]
17,00 mm
Outer Diameter [mm]
47,00 mm
1
11ABE9006(BULK)
Bearing
Quality
STANDARD LINE
Height [mm]
14,00 mm
Inner Diameter [mm]
17,00 mm
Outer Diameter [mm]
47,00 mm
1
12ABE9006(SKF)
Bearing
Quality
PREMIUM LINE
Height [mm]
14,00 mm
Inner Diameter [mm]
17,00 mm
Outer Diameter [mm]
47,00 mm
1
13ABEC3001
Protective Cap, alternator
Quality
STANDARD LINE
Height [mm]
17,70 mm
Inner Diameter [mm]
35,00 mm
Outer Diameter [mm]
37,30 mm
1
14AP0023
Belt Pulley, alternator
Quality
STANDARD LINE
Outer Diameter 1 [mm]
50,00 mm
Inner Diameter 1 [mm]
17,00 mm
Inner Diameter 2 [mm]
37,90 mm
Number of grooves
6
1
15AR3005
Rotor, alternator
Voltage [V]
12 V
Alternator Charging Current [A]
120 A
Quality
STANDARD LINE
Outer Diameter [mm]
98,00 mm
Length 1 [mm]
152 mm
1
16AS3015
Stator, alternator
Voltage [V]
12 V
Alternator Charging Current [A]
110 A
Quality
STANDARD LINE
Inner Diameter [mm]
99,00 mm
Outer Diameter 1 [mm]
117,40 mm
1
17ASL9015
Slip Ring, alternator
Quality
STANDARD LINE
Height 1 [mm]
9,30 mm
Height 2 [mm]
9,30 mm
Length 1 [mm]
37 mm
Outer Diameter 1 [mm]
14,70 mm
Outer Diameter 2 [mm]
27,30 mm
Inner Diameter 1 [mm]
7,00 mm
Inner Diameter 2 [mm]
8,90 mm
1
18ASL9015A
Slip Ring, alternator
Quality
STANDARD LINE
Height 1 [mm]
9,20 mm
Height 2 [mm]
9,20 mm
Length 1 [mm]
37,6 mm
Outer Diameter 1 [mm]
14,90 mm
Outer Diameter 2 [mm]
27,00 mm
Inner Diameter 1 [mm]
7,00 mm
Inner Diameter 2 [mm]
9,20 mm
1
19PX60
Carbon Brush, alternator
Voltage [V]
12 V
Quality
STANDARD LINE
Thickness [mm]
4,40 mm
Width [mm]
6,30 mm
Height [mm]
15,40 mm
1
20PX60(IKA)
Carbon Brush, alternator
Voltage [V]
12 V
Quality
STANDARD LINE
Thickness [mm]
4,40 mm
Width [mm]
6,30 mm
Height [mm]
15,40 mm
1
21ARC3109
Protective Cap, alternator
Quality
STANDARD LINE
Inner Diameter [mm]
37,50 mm
Outer Diameter [mm]
139,00 mm
1
22ARS3005
Repair Set, alternator
Quality
STANDARD LINE
Height 1 [mm]
1,50 mm
Outer Diameter 1 [mm]
130,00 mm
Inner Diameter 1 [mm]
122,00 mm
1
23ARS3009
Repair Set, alternator
Quality
STANDARD LINE
Thickness [mm]
6,00 mm
Width [mm]
4,80 mm
Length 1 [mm]
43 mm
1
24ARS0032
Repair Set, alternator
Quality
STANDARD LINE
Thickness [mm]
7,80 mm
Outer Diameter 1 [mm]
17,70 mm
1
25ABEP3001Repair Set, alternator1
26ABE9006(FAG)(BULK)Bearing1
27ABE9006(FAG)Bearing1
28ABE9006(NSK)(BULK)Bearing1
29ABE9006(NTN)(BULK)Bearing1
30ABE9006(SKF)(BULK)Bearing1
31ARS3026S(BULK)Repair Set, alternator1
32ARS3026SRepair Set, alternator1
33ARS3028S(BULK)Repair Set, alternator1
34ARS3028SRepair Set, alternator1
35ABE9003(FAG)(BULK)Bearing1
36ABE9003(FAG)Bearing1
37APC3020Protective Cap, alternator1
38ARC3075Rectifier, alternator1
39ABEC3004Protective Cap, alternator1
40ARS3027SRepair Set, alternator1
41ARS3008Repair Set, alternator1
42ARS3027S(BULK)Repair Set, alternator1
43ARS3025SRepair Set, alternator1
44ARS3025S(BULK)Repair Set, alternator1
45ARS2009Repair Set, alternator1
46ARS9053Repair Set, alternator1
47ARS3003Repair Set, alternator1
48ARS2005Repair Set, alternator1
49ARS3043S(BULK)Repair Set, alternator1
50ARS3043SRepair Set, alternator1
51ASL9015P(BULK)Slip Ring, alternator1
52ASL9015PSlip Ring, alternator1
53ABE9004(BULK)Bearing1
54ABE9014(BULK)Bearing1
55ASL9015(BULK)Slip Ring, alternator1
56ZS0002Bearing1
57ZS0003Carbon Brush, alternator1
58ABE9003(NSK)(BULK)Bearing1
59ABE9003(NTN)(BULK)Bearing1
60ABE9003(SKF)Bearing1
61ABE9242(NSK)(BULK)Bearing1
62ABE9242(NSK)Bearing1
63ABE9003(SKF)(BULK)Bearing1
64ARE3010(VALEO)Alternator Regulator1
65ARE3010Alternator Regulator1
66ASL9071S(BULK)Slip Ring, alternator1
67ASL9071SSlip Ring, alternator1
68ABEP3001(BULK)Repair Set, alternator1
69ABE9006(KOYO)Bearing1
70ABE9006(NACHI)Bearing1
71ABE9006(NACHI)(BULK)Bearing1
72ABEC3001(BULK)Protective Cap, alternator1
73ABEC3004(BULK)Protective Cap, alternator1

OE numbers. The originals this part replaces.

Numbers the vehicle makers and other brands use for this part. Only a confirmed OE number links to its own page; other brands' equivalents are under “Equivalent products”.

Show all 16 OE numbers

Where this part fits

Original-fit position for OE 03C903023B. The red ring marks where this part installs on the vehicle.

Alternator — Polo Polo (Typ 6C) (2013–2022) — Individual parts for 3-phase alternator
Polo Polo (Typ 6C) (2013–2022) · Individual parts for 3-phase alternatorPosition 1

Equivalent products. They fit in the same place.

2 available · 61 numbers

All Power generator
All 61 cross-reference numbers

Numbers other makers give for this part. They are aftermarket numbers, not the vehicle maker's OE numbers; a linked number is one we sell.

  • AS-PL 4636
  • AS-PL 301817RI
  • AS-PL 301817RIB
  • AS-PL 301817RIV
  • AS-PL 441964
  • AS-PL 441985
  • AS-PL 553566RIV
  • AS-PL 2010131
  • AS-PL 2015448
  • AS-PL 20179844OE
  • AS-PL A12BH1165A2
  • AS-PL ALB1817
  • AS-PL ALT198
  • AS-PL ALT0415
  • AS-PL ALT00492
  • AS-PL ALT121310
  • AS-PL ALTS314
  • AS-PL ALV1817
  • AS-PL RNLTG11C015
  • AS-PL STX100831
  • AS-PL STX101601
  • AS-PL STX101601R
  • AS-PL UD01784A
  • AS-PL VAL439491
  • AUTOELECTRO AEC1817
  • BOM-Prestolite A1001B
  • BOM-Prestolite A1060V
  • BOSCH 0124325044
  • BOSCH 0124325095
  • BOSCH 0124325128
  • BOSCH 0986045320
  • BV PSH 305.538.110
  • CASCO CAL10131
  • CASCO CAL10131AS
  • CASCO CAL10131ES
  • CASCO CAL10131GS
  • CASCO CAL10131OS
  • CASCO CAL10131RS
  • CASCO CAL15448GS
  • DELCO REMY DRB5320
  • EAI 56872
  • ELSTOCK 28-4865
  • ERA 210544
  • ERA 210699
  • FRIESEN 9045320
  • HC-Cargo 114769
  • HC-Cargo F032114769
  • HC-PARTS CA1817IR
  • HELLA 8EL012426-291
  • HELLA 8EL738202-001
  • LUCAS LRA02361
  • LUCAS LRA2361
  • MAGNETI MARELLI 944390453200
  • PowerMax 9213496
  • PowerMax 89213496
  • VALEO 437456
  • VALEO 439491
  • VALEO 2542731
  • VALEO TG11C015
  • VALEO TG11C057
  • WAI 23361N

Compatible cars. AUDI, SEAT, SKODA +1, 37 models.

Matched from the manufacturer's data. Production years 2001–2022.

Power generator for AUDIPower generator for SEATPower generator for SKODAPower generator for VW

Models AS-PL A3204 fits
ModelEnginesYears
AUDI3 models
AUDI A3 (8P1)1.4 TFSI, 1.6 FSI2003–2013
AUDI A3 Convertible (8P7)1.4 TFSI2008–2013
AUDI A3 Sportback (8PA)1.4 TFSI, 1.6 FSI2004–2015
SEAT9 models
SEAT ALTEA (5P1)1.4 TSI2004–2015
SEAT ALTEA XL (5P5, 5P8)1.4 TSI2006–2015
SEAT CORDOBA (6L2)1.6 16V2002–2009
SEAT6 more models
Models AS-PL A3204 fits
ModelEnginesYears
SEAT IBIZA III (6L1)1.6 16V2002–2009
SEAT IBIZA IV (6J5, 6P1)1.2 TSI, 1.6, 1.6 LPG2008–2017
SEAT IBIZA IV SC (6J1, 6P5)1.2 TSI, 1.6, 1.6 LPG2008–2018
SEAT IBIZA IV ST (6J8, 6P8)1.2 TSI, 1.62010–2016
SEAT LEON (1P1)1.4 TSI2005–2013
SEAT TOLEDO IV (KG3)1.62012–2019
SKODA7 models
Models AS-PL A3204 fits
ModelEnginesYears
SKODA FABIA II (542)1.62006–2014
SKODA FABIA II Combi (545)1.62007–2014
SKODA OCTAVIA II (1Z3)1.4 TSI, 1.6 FSI2004–2013
SKODA OCTAVIA II Combi (1Z5)1.4 TSI, 1.6 FSI2004–2013
SKODA RAPID (NH3, NK3, NK6)1.6, 1.6 TDI2012–2022
SKODA RAPID Spaceback (NH1)1.62012–2019
SKODA ROOMSTER (5J7)1.62006–2015
VW18 models
Models AS-PL A3204 fits
ModelEnginesYears
VW EOS (1F7, 1F8)1.4 TSI, 1.6 FSI2006–2015
VW GOLF PLUS V (5M1, 521)1.4 FSI, 1.4 TSI, 1.6 FSI2004–2013
VW GOLF PLUS Van (521)1.4 TSi2009–2014
VW GOLF V (1K1)1.4 FSI, 1.4 TSI, 1.6 FSI2003–2010
VW GOLF V Variant (1K5)1.4 TSI2007–2009
VW GOLF VAN VI Variant (AJ5)1.4 TSi2009–2014
VW GOLF VI (5K1)1.4 TSI2008–2014
VW GOLF VI Van (5K1)TSi2008–2012
VW GOLF VI Variant (AJ5)1.4 TSI2009–2014
VW JETTA III (1K2)1.4 TSI, 1.6 FSI2004–2013
VW JETTA IV (162, 163, AV3, AV2)1.4 TSI2008–2019
VW PASSAT B6 (3C2)1.6 FSI, 2.0 FSI2005–2011
VW PASSAT B6 Variant (3C5)1.6 FSI, 2.0 TDI2005–2011
VW POLO IV (9N, 9A)1.4 FSI, 1.6 16V2001–2014
VW POLO V (6R1, 6C1)1.2 TSI, 1.4 (6R1), 1.4 GTI, 1.6 BiFuel2009–2022
VW TOURAN (1T1, 1T2)1.4 TSI, 1.6 FSI2003–2011
VW TOURAN (1T3)1.4 TSI2010–2016
VW TOURAN VAN (1T1, 1T2)FSI2003–2010

Always verify compatibility with your vehicle before ordering.

More about this part. Related categories and similar parts.

AS-PL

More AS-PL parts

Related categories

All Power generatorAUDISEATSKODAVW

Customers also bought

Common OE numbers for this part

Common original equipment numbers linked to stocked alternatives.

Related Guides

Power Steering Pump Buying GuideWhining noise and heavy steering — pump failure diagnosis, system flushing, and fluid specification guide.Brake Master Cylinder Buying GuideSpongy or sinking brake pedal? How to diagnose a failing brake master cylinder, bleed the system, and choose the right replacement.Brake Shoe Set Buying GuideRear drum brake shoes — lining materials, wear limits, self-adjusting mechanisms, and how to replace brake shoes safely.Brake Fluid Buying GuideDOT 3, DOT 4, DOT 5.1 explained — dry and wet boiling points, hygroscopic ageing, and when to flush your brake fluid.

Delivery and returns. No small print.

£5.99

Standard delivery

4–8 working days.

£50.00

Free delivery

Orders from £50.00

14 days

Returns

Money back if the part does not fit.

  • Visa
  • Mastercard
  • PayPal
  • Apple Pay
  • Google Pay
  • Klarna

Secure payments

Encrypted checkout

12-month manufacturer warranty on all parts. 14-day money-back guarantee if the part doesn't fit your vehicle. Delivery terms
