CP247
Gallery
BrandABAKUS
MPN231-03-062
OE refs2
SKU4657-231-03-062

Similar products

Customers also bought

Details

SpecificationValue
BrandABAKUS
MPN231-03-062
CategoryBrake rotor
Test MarkECE R90
Height [mm]50.3 mm
Brake Disc Thickness [mm]26 mm
Outer Diameter [mm]286 mm
Centering Diameter [mm]68 mm
Bolt Hole Circle Ø [mm]108 mm
Article number of recommended accessories131-07-166
Article number of recommended accessories131-07-165

OE numbers (2)

Search by this OE number to find compatible parts

About this product

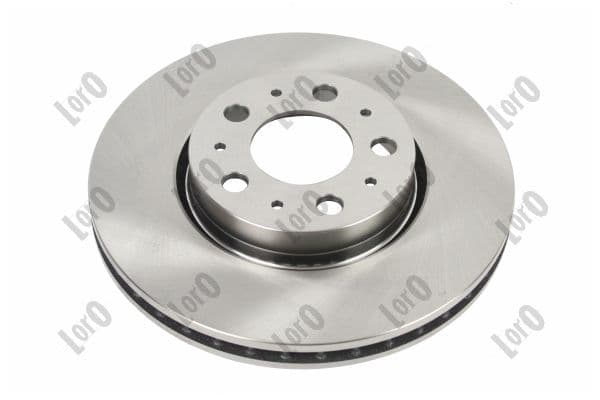

ABAKUS brake disc (231-03-062) is precision-machined from high-grade grey cast iron for uniform heat dissipation and resistance to thermal cracking under heavy braking. Key dimensional data — Test Mark: ECE R90, Height [mm]: 50, Cast Iron mm, Required quantity: Aluminium, Brake Disc Type: Carbon — ensures the rotor geometry meets OEM tolerances for run-out, thickness, and parallelism right out of the box. Compatible with VOLVO vehicles; the hub-centric bore and bolt-circle pattern match the original specification exactly. Direct replacement for OE references: 09.8633.10, 09.8633.11, 09.8633.1X, 09.8633.75 and 47 more. ABAKUS rotors are checked for surface hardness and dynamic balance before dispatch, keeping braking distances predictable throughout the service life of the disc. Brake discs generally last 50,000–70,000 miles, though this varies with driving habits, terrain, and pad compound — heavy urban driving or towing shortens disc life considerably. Warning signs of worn discs include visible scoring or lip formation on the friction surface, vibration through the steering wheel under braking, and a persistent grinding noise even with new pads fitted. Disc replacement is an intermediate DIY task; you will need a torque wrench, a breaker bar (some hub-to-disc retaining screws seize over time), and a jack with axle stands — budget 1–2 hours per axle. When selecting brake discs, check that the disc type (vented or solid) matches the original, and look for a protective anti-corrosion coating on the hub and non-friction surfaces to prevent rust jacking. Always replace discs in pairs (both sides of the same axle) to maintain even braking balance, and bed in new discs with the manufacturer's recommended gentle-braking procedure for the first 200 miles. Every part is dispatched with tracked delivery and a 14-day money-back guarantee with hassle-free returns.

Brake rotor buying guide

Why replace this part?

Brake discs work together with brake pads to bring your vehicle to a stop. Over time, discs wear down, develop grooves, or can warp from heat. Worn or warped discs reduce braking efficiency and can cause dangerous vibrations at speed.

Signs you need a replacement

  • Pulsating brake pedal
  • visible grooves or scoring on the disc surface
  • vibration during braking
  • grinding noise even with new pads
  • disc thickness below minimum specification

When to replace

Every 50,000–80,000 miles. Always measure disc thickness during pad changes — most discs have a minimum thickness stamped on the hub.

Installation difficulty:Moderate — requires basic tools and mechanical knowledge

Suitable cars

Equivalent products (49)

Show all 49 OE numbers
BARUMBAR26122
BENDIX562244B
BREMBO09.8633.10
BREMBO09.8633.75
CIFAM800-560
FERODODDF1163
FERODODDF1163-1
FERODODRF1163
FTEBS5226
GALFERB1.G226-0122.1
GALFERG2126122
GRAFDF29560
HART220811
HELLA PAGID8DD 355 107-041
HELLA PAGID8DD 355 107-051
JURID562244J
MAXGEAR19-1296
MAXGEAR19-1296MAX
MAXGEAR19-1296SPORT
METELLI23-0560
METELLI23-0560C
MGAD1454
MINTEXMDC1432
NK204841
PAGID50282
PAGID50282PRO
QUINTON HAZELLBDC5226
QUINTON HAZELLBSF5226
ROADHOUSE6619.10
ROULUNDS BRAKINGD2424
TEXTAR92100500
TEXTAR98200 1005 0 1
TEXTAR98200 1005 0 1 PRO
TRWDF4238£42.99
ZIMMERMANN610.3701.00
ZIMMERMANN610.3701.50
ZIMMERMANN610.3701.70

Brake rotor ABAKUS 231-03-062compatible car models

Car modelsVOLVO: S60 I (384), S80 I (184), V70 II (285), XC70 I Cross Country (295)
Engines2.0 T; 2.0; 2.4 T XC AWD
Year of manufacture1997-2010
Manufacturer article number (MPN)231-03-062
OE part numbers272403, 946133
Compatibility check

Loading vehicle data…

Please wait while we load vehicle compatibility information.
Description and what's included

ABAKUS 231-03-062 LORO. Article number of recommended accessories: 131-07-165. Article number of recommended accessories: 131-07-166. Bolt Hole Circle Ø [mm]: 108 mm. Brake Disc Thickness [mm]: 26 mm. Brake Disc Type: 8. Centering Diameter [mm]: 68 mm. Height [mm]: 50,3 mm. Number of Holes: 5

What's included:
  • 1x Brake disc
Shipping, returns, warranty

Free UK delivery on orders over £99.00. Tracked standard shipping.

  • Standard delivery: 5–9 business days
  • Order before 5pm — ships the next working day
  • Free returns within 14 days
  • All parts backed by manufacturer warranty

Warranty: 12-month manufacturer warranty on all parts. 14-day money-back guarantee if the part doesn't fit your vehicle.

Frequently Asked Questions

Is this Brake rotor compatible with my car?

This Brake rotor fits VOLVO vehicles. Use the vehicle selector at the top of the page to check exact compatibility — enter your car's make, model, and engine for a confirmed fitment match. All fitment data is verified through TecDoc.

What specifications does this ABAKUS Brake rotor have?

This ABAKUS Brake rotor has the following specifications: Test Mark: ECE R90; Height [mm]: 50,3 mm; Required quantity: 2; Brake Disc Type: 8; Brake Disc Thickness [mm]: 26 mm; Outer Diameter [mm]: 286 mm. Check the full specifications table above for complete details.

What OE part numbers does this Brake rotor replace?

This Brake rotor replaces OE part numbers: 272403, 946133. Cross-reference these numbers with your vehicle's original part number to confirm compatibility.

How much does a Brake rotor cost?

This ABAKUS Brake rotor is available for £30.99. Brake rotor prices vary depending on brand, specifications, and vehicle compatibility. ABAKUS parts offer a balance of quality and value, backed by our 14-day money-back guarantee.

How do I know when to replace my Brake rotor?

Watch for pulsating brake pedal, visible grooves or scoring on the disc surface, vibration during braking, or a grinding noise. Brake discs typically last 50,000-80,000 miles but should be measured for minimum thickness during pad changes.

What tools do I need to replace a Brake rotor?

Tools needed: floor jack and axle stands, lug wrench, 7mm hex / Torx caliper bolt socket, pry bar or disc puller, wire brush, brake cleaner, copper grease, torque wrench (wheel bolts to manufacturer spec). Difficulty: Moderate DIY. Safety warning: Do not drive the vehicle until both discs on the same axle are replaced and the brakes have been bedded in. Brake dust may contain harmful particles -- wear a dust mask.

Can I use this part as a replacement for OE 272403?

Yes, this ABAKUS Brake rotor is a direct replacement for OE part number 272403. It is manufactured to meet or exceed original equipment specifications, ensuring proper fitment and performance. All cross-reference data is verified through TecDoc.
